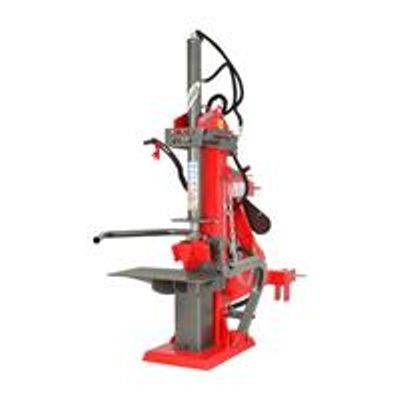

Krpan - Model C Multi 11 K -Log Splitter

• Drive P.T.O. shaft
• Drive Power /
• Splitting Force 13 t
• Piston Hub 970 mm
• Splitting Height 600/1100 mm
• Splitting Speed (S2-S1)-R* (s/1000 mm) (3,3-5,9)-2,6
• Max. Shaft Rotations 52 (540) min-1
• Oil Quantity in Tank 30 l
• Recommended Tractor Power 21 kW / 29 HP
• Dimensions WxLxHx(Ht)** 805x1160x2840x(1850) mm
• Weight 370 kg
• Splitting wedge Optional
• Splitting Table with Extension Optional
• Cast-Iron Pump Standard
• 1t-Winch Optional
• Lifting Device Optional

*S2- second gear; S1- first gear; R – reverse movement of the cylinder
** HT – transport height; transport height with winch is 2100 mm
