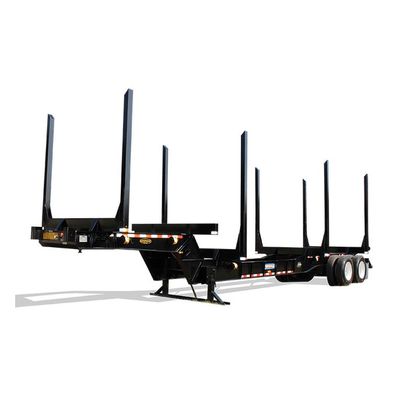

Pitts - Model LP40-4UL - Log Trailer
FromPitts Trailers
Starting at 9,900 lbs. 80,000 GVWR. Ultra Load Payin 100K psi Domex Exclusive Bolster and Standard Tubing. Removable DOT Approved Headboard. Exclusive 4-Leaf High Capacity Spring Suspension Standard Heavy Duty Single Point Spring and Air Ride Suspensions Available. Grote Ultra Blue™ – Sealed Wiring Harness – Grote™ High Count LED Lights. Steel Shot-Blasted – Primed – Painted with PPG™ Automotive Grade Acrylic Urethane.
Most popular related searches
Axles
- 25,000 lb capacity, 77 1/2” track
- Anti Lock brake system
- 16 1/2” x 7” air brakes
- Type 30/30 brake chambers
Suspension
- Hutch 9700 3 point heavy duty 4 leaf steel spring
Wheels
- 10 hole unimount
Tires
- 11R24.5 radials
Bolsters
- 4” x 10” tubing, 70K yield
Standards
- 5” x 5” tubing, 70K yield
Landing Gear
- 4 1/2” x 4 1/2” tubing, 100K yield
Bumper
- 4” x 6” tubing, 70K yield
Air Tank
- Covered
Winches
- With 30’ nylon straps
Main Frames
- 21” fabricated beam, T-1 steel
TooL Box
- (1) Standard
Paint
- White Blasted, Two Part Primer, Two Part PPG Black
- Acrylic UrethaneBlack is Standard.
