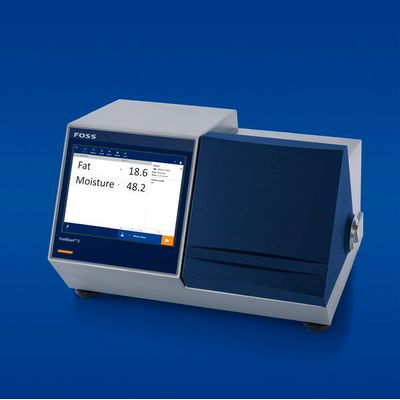

FOSS FoodScan 2 - Machine for Olive Processing
FoodScan™ 2 for olive processing is a versatile solution for testing the quality of whole olives for payment and for controlling olive paste and pomace in olive oil production. The instrument is based on the well-proven FoodScan 2 near infrared (NIR) technology platform.
Value
Fast and easy testing without sample preparation provides insight for payment and quality control of whole olives. Improved control of paste and pomace in olive oil production.
Sample type
Whole olives, olive paste & olive pomace.
Parameters
Moisture and oil content.
Item: Specification
Power supply: 100-240 VAC, 50-60 Hz.
Power consumption: Max 110 VA
Ambient temperature: 5-35 ºC (41–95 ºF) for FoodScan 2 Pro and FoodScan 2 Lab TS (with embedded PC)
5-40 ºC (41–104 ºF) for FoodScan 2 Lab (without embedded PC)
Altitude: Up to 2000 m
Relative humidity: <93 % RH
Minimum PC requirement
(for external PC for FoodScan 2 Lab)
Dual core 2.8 GHz
4 GB RAM memory
2 100 Mbit Ethernet interface (1 if the PC is not to be connected to FossConnect™)
Display with 1024 x 768 resolution
20 GB free disc space recommended
Operating system required
(for external PC for FoodScan 2 Lab): Windows 10 (64 bit) Pro, Enterprise, Windows 11 (64 bit) Enterprise,
Software: ISIScan Nova
Interfaces
1 USB and 1 Ethernet for FoodScan 2 Pro
2 USB and 1 Ethernet for FoodScan 2 Lab TS
Technology
NIR transmission, wavelength 850-1100 nm
NIR reflection, wavelength 400 – 700 nm
Monochromator based
Display
10.4’’ TFT touch screen for FoodScan 2 Pro and FoodScan 2 Lab TS
Barcode reader support: HID-POS
Protection class:
IP 65: FoodScan 2 Pro
IP 43: FoodScan 2 Lab TS, FoodScan 2 Lab
Analysis time
App. 25 sec. with 18 independent samples (large cup)
App. 20 sec. with 7 independent samples (medium cup)
App. 15 sec. with 3 independent sub samples (small cup)
Check cell: Included
Weight: 31 kg for FoodScan 2 Pro
30 kg for FoodScan 2 Lab TS
29,5 kg for FoodScan 2 Lab
Dimensions (w x d x h): 52 x 49 x 35 cm (20.8 x 19.6 x 14 inches)
Recommended bench space (w x d): 60 x 70 cm (24 x 28 inches) if operated with built-in PC for FoodScan 2 Pro and FoodScan 2 Lab
100 x 70 cm (40 x 28 inches) if operated with external PC for FoodScan 2 Lab
SmartAnalytics: This instrument is SmartAnalytics enabled. Turn your data into actionable insights that give you full control of your production across sites. Increase your efficiency, accuracy and uptime to ensure the safe and consistently high-quality food and feed products your customers expect.
