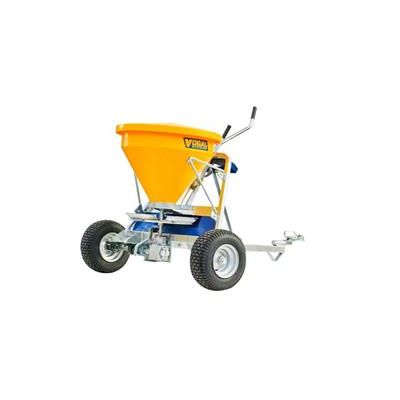

Rata VOGAL - Model Spreadmax EX120 -Mag & Fertiliser Spreader

SHARE

Designed to spread causmag, urea, grass seed and various other types of fertiliser, the EX120 is the smallest quad bike spreader in the Vogal range that incorporates the easy-lock drive engagement system. This means the drive engagement is controlled from the front of the spreader along with the shutter aperture control, via two levers. No more getting off the bike to engage the spinner disc! Also included in the design is a double bearing on the drive wheel which reduces load on the gearbox, a wide track width, stainless steel shutter, super strong drawbar, U.V. resistant plastic hopper and lid and adjustable spinner fins are all included in this superior design.

Most popular related searches
fertilizer spreader
grass seeding
grass seed
fertilizer
seeding
urea
fertilizer spreading

Easy Lock Drive

Vogal EX120 spreaders feature the `Easy Lock` drive system, this means drive engagement is by a handle at the front of the spreader which moves the slider to engage or disengage with minimal effort. Steel bash plates protect the drive slider
Swivel Tow Coupling
EX120`s feature a greaseable swivel tow coupling. Swivel tow couplings are ideal on undulating and hilly ground to allow the spreader to follow the terrain independent of the bike or utv.
Multiple Spinner Fins
EX120 spreaders feature six fins on the spreading disc to ensure optimal spreading of both powdered products such as Causmag and lime flour along with standard prilled fertilisers.
Dual Triangular Apertures
Dual triangular apertures enable the even spreading of a vast arry of fertilisers and also grass seeds! Note the agitator has been removed to show the hardened steel bush in place of a corrosion prone bearing.
Removable Agitator
Vogal EX120`s feature this removable agitator that`s secured onto the drive shaft via a lynch pin. The purpose is to provide an easy way of removing the agitator to enable easy cleaning of the spreaders hopper base.
Heavy Duty Build
Vogal EX120 spreaders feature a heavy duty galvanised frame with extensive gusseting and bracing to ensure high strength and durability for handling large loads of fertiliser on bumpy ground.
