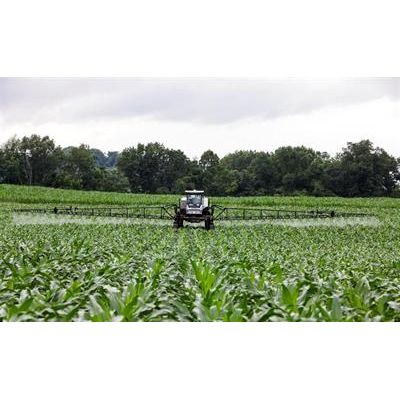

Mako - Model 450 - Self Propelled Sprayers
The Mako is simple enough for first time applicators, yet smart enough for the pros.
-
Most popular related searches
Products Details
- 1,500 litre product tank
- 117 cm of clearance
- 203-274 cm (80-108 in.) adjustable width axles
- Fuel efficient mechanical drive train
- Tier 3 Cummins engine, 130 hp
- Allison 2100 RDS, automatic 5-speed transmission
- 13.8 ft (4.2 m) turning radius
Specifications
ENGINE
- Cummins Tier III, 4 cylinder diesel 4.5L
- 130 hp engine @ 2500 rpm
- Fuel/water separator
- 140 amp alternator
- 1000 cca single battery
- Cruise control
- 166 L Fuel tank capacity
- 11 L Engine oil capacity
TRANSMISSION AND DRIVE SYSTEM
- Automatic, Allison 2100 RDS transmission
- 5-speeds forward
- Mechanical drive
- 35 kph max. Transport/road speed
- Dana Model 44-IC differential, 4.09:1 reduction
- Drive shaft, double telescoping, 203-274 cm (80-108 in.)
SPEED RANGES
- 1st: 7 kph
- 2nd:12 kph
- 3rd: 16 kph
- 4th: 22 kph
- 5th: 35 kph
- Reverse: 5 kph
CAB
- Curved glass windshield with all glass door
- Air suspension seat
- Windshield washer
- Dual purpose paper/charcoal cab filter
- Night and general use interior dome lights
- Tilt and telescoping steering with horn
- Air conditioning and heat
- AM/FM radio with CD player, 50W x 4 speakers, USB, MP3
CONTROLLER
- 460 Controller with GPS speed sensor
LIQUID SYSTEM
- 1,500 L polyethylene product tank
- 2 in. (50 mm) diameter quick fill
- Engine mounted, belt drive Hypro centrifugal pump with electromagnetic clutch
- Manual adjust with electric on/off agitation
- 50-mesh screen filtration
- ISO spray controller
- ISO 5-section tip control
- Electronically controlled spray manifolds, 5-section
- 56 litre fresh water tank
- 12 volt system
BOOM
- Hydraulic adjustable boom height: 21-76 in. (53-193 cm) low setting and 37-92 in. (94-234 cm) high setting
- Hydraulic boom fold over with cushion cylinders
- Hydraulic boom tip lift
- 60/80 ft (18/24 m) boom, 5 section, 10 in. off centre nozzle spacing, stainless lines and rotary triple nozzle bodies
- Inner boom breakaway with shock absorber, auto. reset
- Hydraulic breakaway for outer boom section with electric over hydraulic reset
CHASSIS
- Epoxy primed, urethane finish, rectangular tube steel gusset and plate-reinforced rigid box frame
- Independent integral strut and spring front suspension with oscillating front axle
- Independent knee action rear suspension with coil sprint
- 139.9 in. (355 cm) wheelbase
- Frame construction: 5 x 3 x .3 in. (13 x 8 x 1 cm) rectangular tube steel
- Clearance: 46 in. (117 cm)
- Wheelbase: 139.9 in. (355 cm)
- Overall length: 245 in. (622 cm)
- Overall width: 108 in. (274 cm) top-fold boom tips, 112 in. (285 cm) side-fold boom tips
- Overall height: 124 in. (315 cm)
- Turning radius: 13.8 ft (4.2 m)
- Toolbox
AXLES
- Adjustable tread width, front and rear, 203-274 cm (80-108 in.)
- Rear hydraulic axle adjust
- 5.21/1 rear chaincase final drives
- Oil bath lubricated, pre-stretched, endless drive chains
- Easy to maintain
HYDRAULICS
- 15 litre hydraulic reservoir capacity
- Open center hydraulic system
- 15 L/min engine driven gear pump
TYRES, BRAKES AND SUSPENSION
- Front tyres and wheels: Fluid filled, 320/85R24
- Rear tyres and wheels: 12.4R32 ILOS
- Individual left and right power disc brakes
- Front operated parking brake
- Front Suspension: Independent spring suspension with oscillating front axle
- Rear Suspension: Independent knee action suspension with coil spring and hydraulic shock
WARRANTY
- 2 year/2,000 hour Cummins engine warranty
- 3 year/2,500 hour Allison transmission warranty
- 2 year/2,000 hour Dana rear warranty
- 1 year/1,000 hour bumper to bumper warranty
Options
- The Mako 450 is only available in one configuration. All features are standard.
