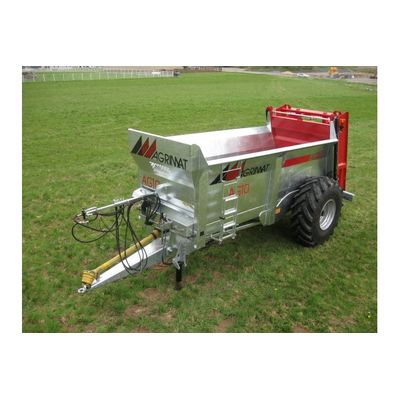

Agrimat - Model AG 8 - 10 - 12 - 15 - Manure Spreader

Thick body with flared sides. Tilted vertical 2 endless screw beater with reversible bolted steel blades. Hydraulic brake. Advance of hydraulic belt with flow controller on support (double-action tractor). Casing transmission drive. Mechanical jack on AG4 and AG6, Hydraulic jack on AG8, AG10. Rear axle, 55 dia. Front grid. Highway code-compliant lighting. Spreading width: 6 to 7 m (depending on the product ). Ladder. Loading height: 1.45 m. Drawbar with fixed ring. Marine 2-chain belt: AG4 and AG6: 12 mm AG8, AG10: 14 mm. Drive: 540 rpm. Bolt security transmission. Screw thickness: AG8 and AG10: 10mm, AG4 and AG6: 8mm
