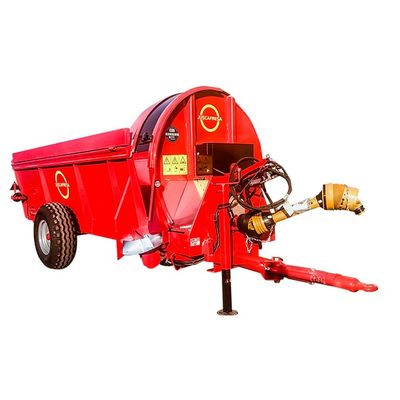

Juscafresa - Model VLG1 BASIC -Manure Spreaders / Muck Spreaders Agricultural Trailers
Manure spreaders / muck spreaders agricultural trailers Juscafresa for vineyard. Destined for small and medium agriculture works / farms of vineyard. Stands out for its excellent spread quality between vineyard. Standard equipped with: Drag system 2 chains. Spreader system with lateral hydraulic unloading by plate or roller. Fixed drawbar. Capacity: 2,00 - 5,00m3.

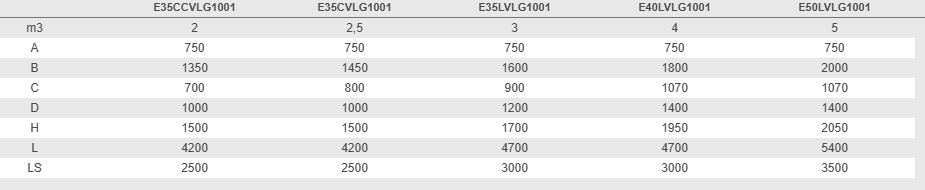

E35CCVLG1
2,00m3
E35CVLG1
2,50m3
E35LVLG1
3,00m3
E40LVLG1
4,00m3
E50LVLG1
5,00m3
The VLG1 models have a maximum width of 1350 - 2000 mm and height of 1500 - 2050 mm ideal for spread between vineyard.
This model only spread in one side.
- Spreader system with lateral hydraulic unloading by plate of standard on models E35CCVLG1, E35CVLG1, E35LVLG1 and E40LVLG1 or optional on models E50LVLG1.
- Spreader system with lateral hydraulic unloading by roller of standard on models E50LVLG1 or optional on models E35CCVLG1, E35CVLG1, E35LVLG1 and E40LVLG1.
- Mechanical disk tilt as standard or optional hydraulic tilt.
- Lateral unloading to the right side with hydraulic elevation of 1080mm length.
Material Steel
4mm side thickness of standard and floor thickness of 3mm.
Security screw of standard or homokinetic joint optional front transmission and overrunning clutch and back transmission with standard.
Kit of 2 chains.
Hydraulic advance chains with reducer 1/8,15.
Turbine diameter of 1000mm on models E35CCVLG1 and E35CVLG1; 1200mm on model E35LVLG1 and 1400mm on models E40LVLG1 and E50VLG1.
Lateral unloading to the right side with hydraulic elevation of 1080mm length in option.
Channelers sheets of manure on roller to direct it where we want.
Rear push door optional.
Fixed drawbar.
Axle
Square straight axle without brakes.
“A higher quality finish means more machine life”
The Juscafresa finishing process is:
- Polishing of the whole machine removing the impurities that persist in the metal.
- Pressurized washing with degreaser solution to obtain a better grip on the primer and prevent corrosion.
- Wash at high pressure with hot water to remove dirt from the metal and remains of adhered products.
- Application of a high quality primer layer.
- Application of two layers of Juscafresa paint specially designed with our corporate color.
