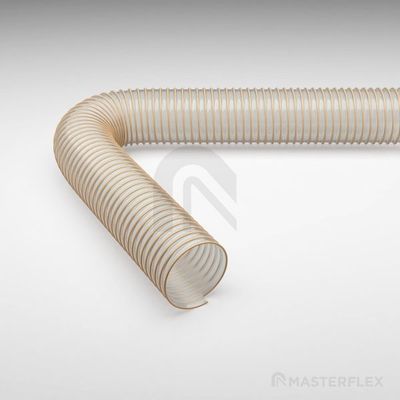

Masterflex Master - Model PUR-H HT125 -Suction and Transport Hose

Short Info
Description, addition to product name: Suction hose & Transport Hose, medium weight, constant temperature resistant up to 125 °C, good flexibility, permanently antistatic

Construction / Material
Type of construction: Profile extruded hose with metal spiral
Spiral Design: made of steel wire
Material of the spiral: Spring steel
Execution of the wall: Made of specified material, the Wall thickness between the spirals is approx. 1.4 mm
Material of the wall: Made of high-temperature polyurethane (more temperature resistant than standard polyurethane)
Specifications of the wall: Surface resistance R0 < 10? Ohm, measured according to DIN EN ISO 8031

Properties
Specifications of the product: According to TRGS 727 and ATEX 2014/34 EU
Chemical Properties: good resistance to petrol, very good resistance to chemicals, good resistance to oil
Flexibility: Very flexible
Weight: Medium-Heavy
Pressure Resistance: Moderately pressure resistant

Operating Temperature
Temperature Range: -30 to 125 °C
short-term maximum temperature: peaks to 150 °C

Application Areas
Areas of application: Plant & Mechanical Engineering, Robotics & Automation
