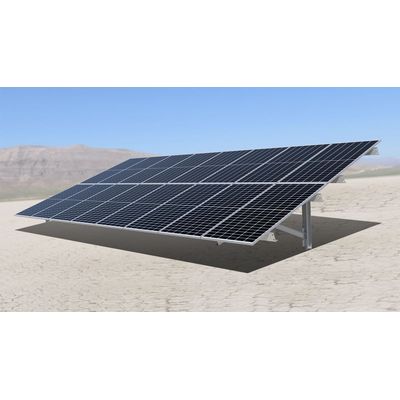

MaxSpan - Single Post Driven Fixed Tilt Systems

2-4Up in Portrait, Wide Flange, Screw, or Helical Post (4-8Up in Landscape Available).

Most popular related searches

FASTER INSTALLING

Integrated Hardware™ cuts part count and speeds install
Fewer foundations than competing systems, which also means less posts and less post installation cost. As few as 130 posts per MW

STRONGER STEEL

High strength steel and truss engineering combine to make industry’s longest spans and lowest post counts as few as 190 per MW for 2 up portrait and 130 per MW for 3 up portrait
Stronger steel allows for less thickness and weight, which means lower equipment and shipping cost

SUPERIOR TERRAIN NAVIGATION

Patent pending articulating purlins between tables enable installation on sites with complex slope issues, which when combined with post and post bracket adjustment handle up to 15% east-west terrain slopes and undulations
Long slots enable three axes of adjustability demanded by installers for navigating real world site conditions

MaxSpan™ with Preassembled TwistClamps™Industry’s Biggest Breakthrough of the Decade in Install Speed for Fixed Tilt Structures

Preassembled “Swiss Army Knife” Beam

One worker carry by weight
Just bolt it onto post extender, cut zip tie, swing braces and brackets into position, and bolt down
All hardware and brackets pre-attached and in assembly kit
Super simple staging: one unit replaces previous staging of nuts, bolts, brackets, braces, and beam

TwistClamps™ Increase Install Speed 400%

400 modules per worker day versus 100 with nuts and bolts
One worker inserts and twists all pre-assembled TwistClamps™ into purlins
Follow-up workers slide modules under TwistClamps™
Workers then use torque wrenches to do just one final rotation on the pre-attached serrated flange nyloc nut to reach required torque and simultaneously grounds the module
Workers can slide modules north and south when TwistClamps™ are used so that the modules always align
