Q3 - Measuring System

Save time and money through sensible and cost-saving irrigation!

This capacitive soil moisture sensor is simply plugged into the soil and measures electronically, permanently and reliably the moisture level in the soil. Via LoRa WAN the data is sent to the cloud every 30 minutes and thus directly to your PC or smartphone - watering is only done when necessary.

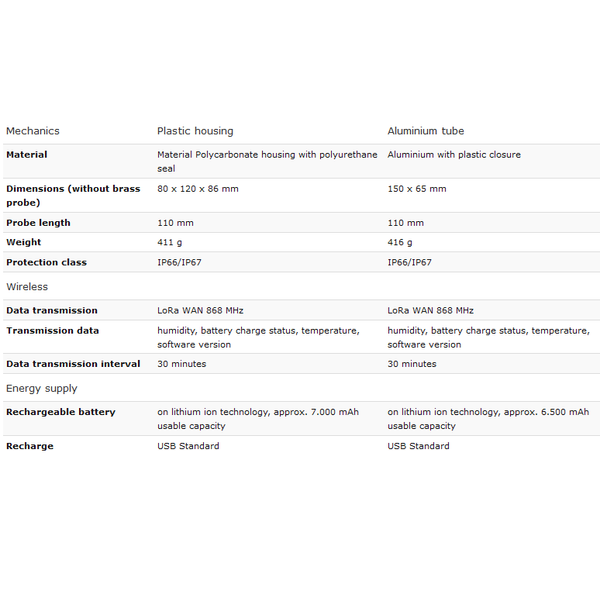

Our sensor is available in a plastic housing or aluminium tube and reliably transmits humidity, voltage, temperature and, if desired, the software version.

The energy supply is provided by a lithium-ion battery with 6,000/7,500 mAh (sensor) to 16,000 mAh (system).

The USB rechargeable battery of the sensors allows a self-sufficient operation of approximately one year with half-hourly value transmission.

The measuring system is automatically recharged by a solar cell and is thus in self-sufficient continuous operation.

Depending on the soil conditions, measurements can be evaluated differently.

Further advantages:

individual cable length, up to 5 meter/sensor
also suitable for automatic irrigation
Solenoid valve optional

For individual standard construction or project-specific for your tailor-made application! Customer-specific variants possible - we will be pleased to realise your wishes. Simply send us your requirements or a specification.
