Mechanic Coupling Irrigation Systems

From

0

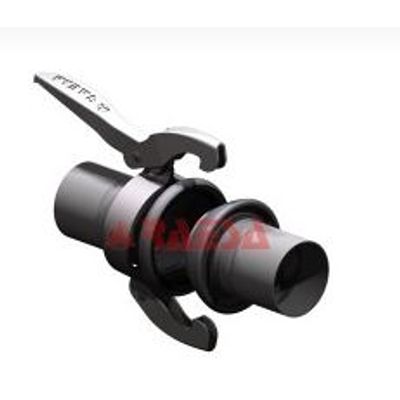

Mechanic coupling irrigation systems have one extruded aluminium pipe with female and knuckle couplers in stamped and galvanised steel by immersion. It is easy to mount, joining the female part of one end with the knuckle coupler of the other end. In the female part we find a ring assembly formed by one hook fastener, one hook tightener and one fixing handle. We connect the hook fastener to the knuckle coupler, then we do the same with the hook tightener and with the handle we close the coupling. This system closing is totally watertight thanks to an o-ring that is incorporated in the female coupler assembly that when we close the system it compresses.

Functioning pressures are:

  • Working pressure: 10 atmospheres.
  • Service pressure: 15 atmospheres.
