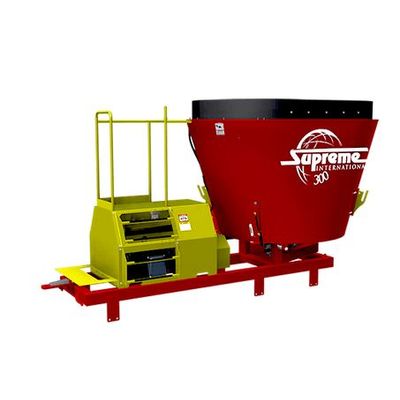

Supreme - Model 300SM -Mechanical Stationary Processors
The 300 Mechanical Stationary has a maximum payload of 6,000 lbs (2,722 kg), struck capacity of 235 ft³ (6.7 m³) or 278 ft³ (7.9 m³) with tub extension, and requires 50 horse power (37 kW). This model has a mechanical drive. All stationary models are equipped with end door and fixed chute for easy unloading of mixed wet or dry commodities. Various pedestal heights are available to fit each operation’s requirements.
50 hp / 37 kW
Struck Capacity: 235 ft³ / 6.7 m³
Capacity with Extension: 278 ft³ / 7.9 m³
N/A
6,544 lbs / 2,968 kg
6,000 lbs / 2,722 kg
Height w/ 6" Pedestals: 92" / 234 cm
Height w/ 10" Extension: 102" / 259 cm
Overall Width: 92" / 234 cm
Overall Length : 200" / 508 cm
Heavy-Duty, Two-Stage Planetary Drive
Fixed Chute w/ 6" pedestals: 18" / 46 cm
4 Replaceable Forage Cutting Blades
Side Door
5/8" (16 mm) M/S Floor
1/4” (6 mm) AR200 Walls
- One Patented Freestanding Vertical Cutting Auger
- Manual Restrictor Plates
- 5/8” / 16 mm AR200 Auger Flighting
- Ultra Wear Kicker Plates
- Viewing Platform
- Scale System
- Tub Mounted Weight Repeater
