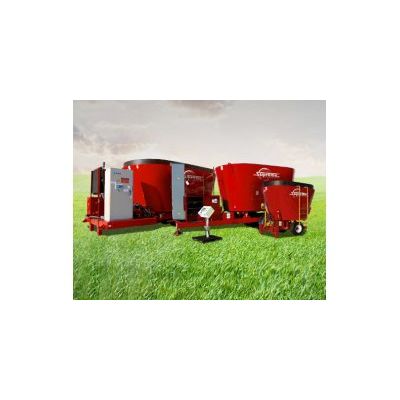

Supreme - Model 400SM -Mechanical Stationary Processors
The 400 Mechanical Stationary has a maximum payload of 10,000 lbs (4,536 kg), struck capacity of 321 ft³ (9.1 m³) or 378 ft³ (10.7 m³) with tub extension, and requires 50 horse power (37 kW). This model has a mechanical drive. All stationary models are equipped with end door and fixed chute for easy unloading of mixed wet or dry commodities. Various pedestal heights are available to fit each operation’s requirements. The 400 is also available as a pull type mixer.
50 hp / 37 kW
Struck Capacity: 321 ft³ / 9.1 m³
Capacity with Extension: 378 ft³ / 10.7 m³
N/A
7,394 lbs / 3,354 kg
10,000 lbs / 4,536 kg
Height w/ 6" Pedestals: 95" / 241 cm
Height w/ 10" Extension: 105" / 267 cm
Overall Width: 105" / 267 cm
Overall Length : 207" / 526 cm
Heavy-Duty, Two-Stage Planetary Drive
Fixed Chute w/ 6" pedestals: 18" / 46 cm
4 Replaceable Forage Cutting Blades
Side Door
5/8" (16 mm) M/S Floor
1/4” (6 mm) AR200 Walls
- One Patented Freestanding Vertical Cutting Auger
- Manual Restrictor Plates
- 5/8” / 16 mm AR200 Auger Flighting
- Ultra Wear Kicker Plates
- Viewing Platform
- Scale System
- Tub Mounted Weight Repeater
