Ferrari Multipla - Mechanical Tray Transplanter
Ferrari Multipla is ideal for transplanting various types of vegetables: brassicas, tomatoes, celery, fennel, tobacco, hemp and many others, with mainly conical, cylindrical and pyramidal modules. MULTIPLA combines the same typical features and the high quality transplant of the brand Ferrari with the possibility of feeding a double row with a single operator; the productivity of the single operator is on average 3,500 plants / hour, with a maximum of 5,000 plants/ hour. The machine is equipped with an intermittent rotating distributor from 14 to 30 cups. according to the chosen version and a self-cleaning ploughshare that allow the plants to be placed exactly at the desired distance and depth. The parallel linkage on each single row guarantees maximum adherence to the ground and excellent work in any condition.
- Versions: 3 point hitch - draw bar
- Frame: fixed frame - folding - telescopic
- Distance in the row: adjustable from 16 [61 to 57 cm [22"]
- Main fittings: rubber roller-granular applicator - fertilizer applicator - water applicator - water pipe stretching tool -hydraulic transmission - back pressing wheel hydraulic adjustment - electric depth adjustment
Maximum productivity per operator
Transplanting machine for plants in modules (diameter from 2 cm [0.8"] to 5 cm [2"])
- Perfect for vegetables such as tomato, brassicas, celery, pepper and all other vegetables similar to the previous ones above listed with min height 9 cm (3.5") and max height 30 cm (12")
- Versions: 3 point hitch, draw, bar
- 3 types of frame: rigid, folding and telescopic.

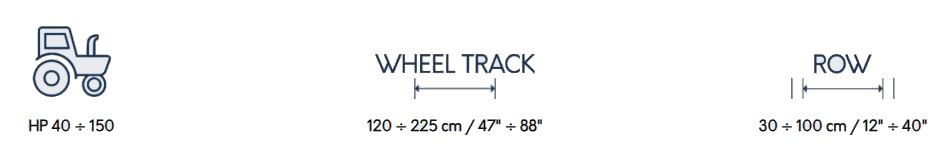

- min and max row spacing between the lines of each element: MULTIPLA Narrow min 30 cm (12") - max 35 cm (14") / MULTIPLA - min 38 cm (15") - max 51 cm (20") / MULTIPLA Randy - min 46 cm (18") - max 70 cm (27.5") / MULTIPLA Maxi - min 70 cm (27.5") - max 100 cm (39")
- Memoplant (historical archive of transplant data exportable on SD card)
- Main fittings: parallel linkage - rubber roller - granular applicator - fertilizer applicator - water applicator - water pipe - streching tool - hydraulic transmission - back pressing wheel hydraulic adjustament

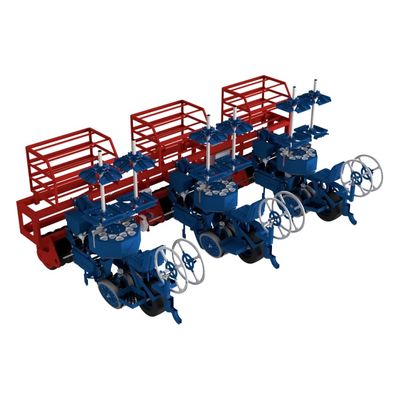

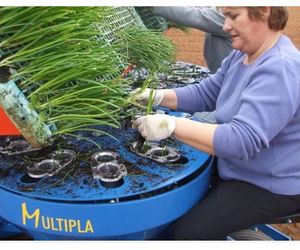

MULTIPLA is equipped with a double-row carousel that splits the plants in two rows and that can be fed by one single operator in order to grant a perfect planting quality even when the ground conditions are very difficult.
The average yield per person per hour is 3,500 plants, however experienced operators can easily reach 5,000 plants per hour.
