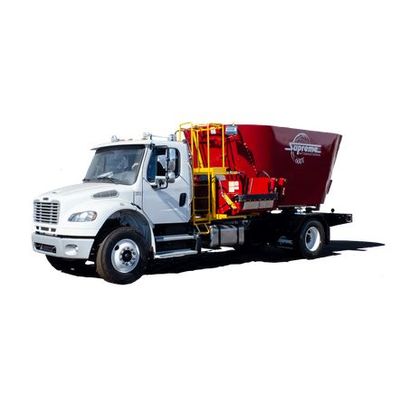

Supreme - Model 600T -Mechanical Truck Mount Processors
The 600T Mechanical Truck Mount has a maximum payload of 14,000 lbs (6,350 kg), struck capacity of 543 ft³ (15.4 m³) or 635 ft³ (18.0 m³) with tub extension, and requires 260 horse power (194 kW). Supreme Mechanical Truck Mount processors use a similar drive system to our mechanical pull types, and include features like HD 2 stage planetaries, AR200 walls, and our patented tub and auger design. The 600T model is also available as a pull type and a stationary mixer.
260 hp / 194 kW
Struck Capacity: 544 ft³ / 15.4 m³
Capacity with Extension: 635 ft³ / 18.0 m³
N/A
12,280 lbs / 5,570 kg
14,000 lbs / 6,350 kg
Height*: 84" / 213 cm
Height w/ 10" Extension*: 94" / 239 cm
Overall Width**: 102" / 259 cm
Overall Length**: 223" / 566 cm
*Height of truck frame to the top of the tub. Add to truck frame height for overall height.
**Overall width and length dependent on the style of truck, conveyor/discharge options ordered.
Heavy-Duty, Two-Stage Planetary Drives
N/A
10 Replaceable Forage Cutting Blades
8’ Flat Variable Speed Hydraulic Driven Chain Discharge Conveyor with Hydraulic Extender
3/4” / 19 mm M/S Floor
1/4” / 6 mm AR200 Walls
- Two Patented Freestanding Vertical Cutting Augers
- Manual Restrictor Plates
- 5/8” / 16 mm AR200 Auger Flighting
- Ultra Wear Kicker Plates
- Viewing Platform
- 4 pt Scale System
- Tub Mounted Weight Repeater
- Articulating Hitch
- Cab Display
- Heavy-Duty Tubular Steel Bolsters
