Anderson Manufacturing, Inc.

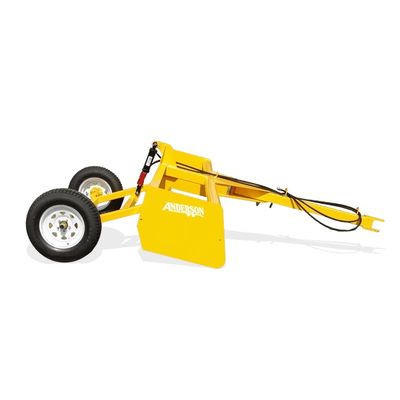

Anderson - Model EBS Series -Medium Duty Box Blade
working width: EBS-8= 8′, EBS-10= 10′,. Machine Width: EBS-8= 8’1″, EBS-10= 10’1″, . Total Length: EBS-8= 11’5″, EBS-10= 11’5″, . Hitch: Drawn w/ Clevis (3/4″ Drop Pin). Hitch Feature: Bolt Pull-Pin for Rotating Tongue 90° for Shipping. Lift Mechanism: Center Mounted Hydraulic Cylinder (2-1/2″ Bore, 1-1/2″ Rod Size, 6″ Stroke). Suspension: Hydraulic Actuated Arm w/ Weld-On Spindles. Number of Axles: Single. Fenders: 9×72″ Diamond Plate w/ Steps. Ramps: 5′ Runner STyle Slide-Out/Hideaway . Wheel Size: ST205/75R15.
Most popular related searches
- Wheel w/ Bolt Pattern: 15″ 5-Bolt White Spoke w/ 5 on 4.5 Pattern
- Tongue Dimensions: 4x4x1/4″ Tube (62″ Length)
- Wheel: 15″ 5-Bolt White Spoke
- Moldboard Thickness: 3/16″ Solid Steel Plate
- End Plate Thickness: 3/8″ Solid Steel Plate
- Vehicle Plug: 7 – Way RV w/ Breakaway & SnapNSeal
- Cutting Blade: 6″ Tall x 3/8″ Thick Grading Blade
- Duty-Style: Medium Duty Box Blade (0-75hp)
- Paint Prep: 5-Stage Super Blast Treatment
- Paint: Super Durable Powdercoat
- Optional: Powdercoat Colors
- Optional: Black Wheels
