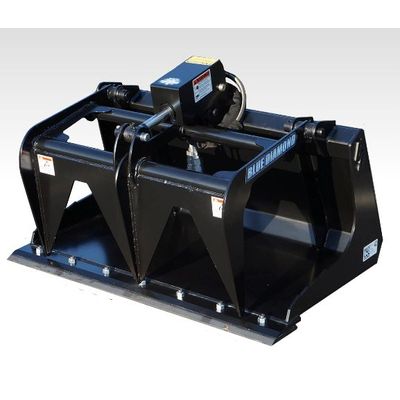

Blue Diamond - Mini-Series Grapple
Blue Diamond® offers the Mini-Series Grapple both in a root grapple and a grapple bucket designed for mini skid steers. These exceptionally tough grapples originated through a need for a tough yet light grapple for interior demolition. This very demanding application gives this grapple an opportunity to make a name for itself as the top in its class. Industrial grade components, from the pivot pins to the cylinders, make this attachment ready for the most demanding conditions.
Most popular related searches
- 1” pivot pins in bushings
- Welded cylinder with 2” bore
- Protected cylinder and lines
- Available from 36” to 50” wide
- Bolt-on edge included with grapple bucket
Part Number : Model : Weight
106020 : 36” Grapple Bucket, Single Clamp : 342 lbs
106030 : 38” Grapple Bucket, Single Clamp : 350 lbs
106032 : 42” Grapple Bucket, Single Clamp : 358 lbs
106035 : 44” Grapple Bucket, Single Clamp : 350 lbs
106045 : 50” Grapple Bucket, Single Clamp : 370 lbs
106036 : 44” Grapple Bucket, Dual Clamp : 441 lbs
106042 : 50” Grapple Bucket, Dual Clamp : 488 lbs
