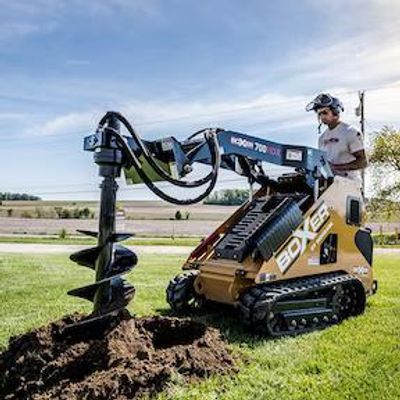

Boxer - Model 700HDX -Mini Skid Steer
The 700HDX features a unique hydraulically expandable undercarriage — from 35″ (89 cm) to 43.5″ (111 cm) — allowing the operator to retract the undercarriage for passages as narrow as 36″ (91 cm) wide then expand for increased stability while in operation by simply pulling or pushing a control lever. With a 24.8-HP (18.5-kW) diesel engine and 11.3 gpm (8.7 lpm) hydraulic auxiliary flow, the 700HDX provides all the power you need for tough jobs. The 700HDX boasts a variety of features, including a redesigned platform with added creature comforts, hydrostatic drive, piloted joystick controls, rubber-isolated engine and hydraulic components, tightened boom tolerances and a whole lot more!
Most popular related searches
General
- Type: Kubota
- Cooling System: Liquid
- HP/kW: 24.8 HP
- Fuel Type: Diesel
- Fuel Capacity: 9 Gallons
- Hydraulic Capacity: 24 Gallons
- System Flow (Total): 27.1 GPM
- Hydraulic Flow Aux (Hi/Lo): 11.3/8.7 GPM
- Hydraulic Flow (Drive): 7.1 GPM
- System Pressure: 3000 PSI
- Engine Warranty: 2 years
- Product Warranty: 1 year
- Track Gauge: 33.75 in
- Track Width: 9 in
- Weight (No Attachment): 2880 lb
- Length (No Attachment): 77 in
- Length (w/Bucket): 96 in
- Width (Fully Retracted): 34.5 in
- Width (Fully Extended): 43.5 in
- Height (Boom Lowered): 54 in
- Height (Boom Raised): 98 in
- Hinge Pin Height: 77 in
- Dump Height: 60 in
- Dump Angle: 37 Degrees
- Reach: 34 in
- Tip Capacity: 2020 lb
- Operating Capacity, 35% of tip load: 707 lb
- Ground Clearance: 5 in
- Ground Speed: 4.5 MPH
- Ground Pressure: 4.12 PSI
