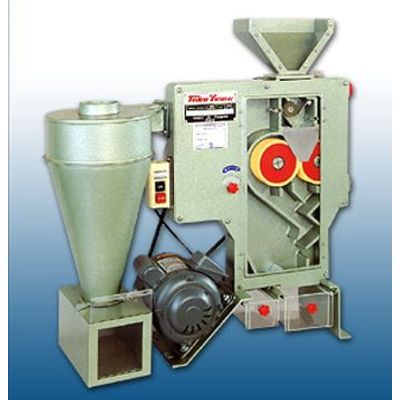

Tw Grandeur - Model MTH-35A -Mini Testing Husker

1. Operation is simple and quiet. From the outside you can see the husking condition.
2. Husked rice, husks and immature paddy are separated automatically by the fan.
3. Light weight construction makes it easy for transportation.
4. Husking ratio is high and steady because the large rubber rolls are used.

MODEL: MTH-35A
Capacity/hr: 40kg
Power required
Rubber Roller size: 1 1/2" x 4"
R.P.M: 1900; 1000

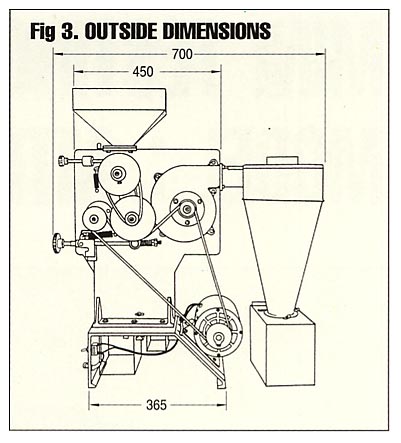

Machine Dimensions LxWxH mm: 700x700x310
Packing dimensions LxWxH mm: 750x750x360
Gross Weight: 37 kg
Total Packing: Volume 7.3 cft

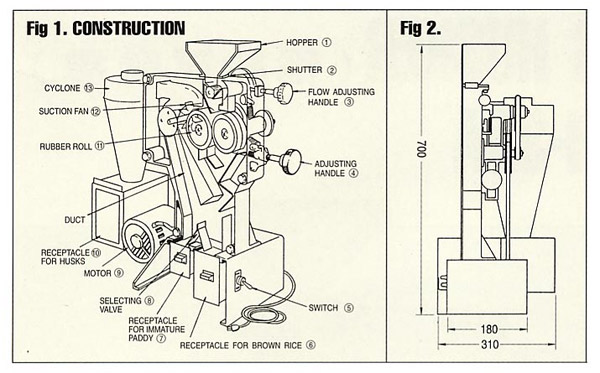

• The sample of paddy is fed to the hopper 1 installed on the machine.
• When the shutter 2 is opened, the sample flows into the machine.
• The flowing rate can be adjusted by the flow adjusting handle 3
• Paddy is husked into brown rice when it passes through the clearance between two rubber rolls 11 which rotated at different speeds.
• The clearance between the two rubber rolls is adjusted by the adjusting handle 4.
• Brown rice and immature paddy are separately discharged to the receptacles 6 . 7 , Husks are sucked by the suction fan 12 and are collected into the receptacle 10 through the cyclone 13 .
