Sutter - Model 300 -Mini Trail Dozer

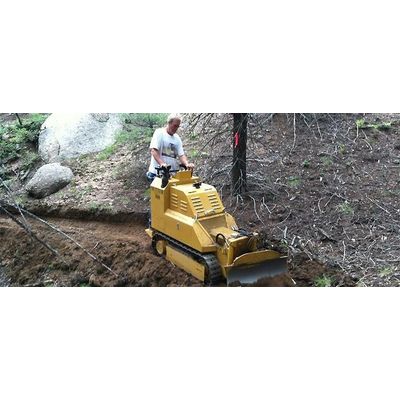

You can build approximately 1000 ft./hr. of under 30" wide single track trails. Build trails uphill with ease and rolling dips in minutes. Pay for the SUTTER 300 Mini Trail Dozer™ in less than one season with the savings realized from decreased labor costs.
Protected by U.S. Patent No. D785,680
Designed for single track trail construction and maintenance, public works, contractors, ranchers and residential.
You can build approximately 1000 ft/hour of under 30" wide single track trails. Build trails uphill with ease and rolling dips in minutes. Pay for the Sutter 300 Mini Trail Dozer™ in less than one season with the savings realized from decreased labor costs.
Specifically designed, engineered and tested for single track trail making., wood lots, parks and recreation, city, county, state and federal maintenance work, ranchers, contractors and residential.
- Engine: Hatz 3H50TI Turbo
- EPA Rating: Tier 4
- Fuel: Diesel
- Horsepower: 24.7 HP 1,400 RPM (95ft lbs of torque)
- Type: 4 cylinders
- Cooling Medium: Water
- Electrical System: 12 volts
- Max Inclination, all angels: 30 degrees
- Fuel Consumption (Avg): 1.0 Gal/Hr approx.
- Transmission Sauer-Danfoss twin hydrostatic pumps and Auburn Gear 70,000 in. lb. torque hubs
- Steering Dual controls, full hydrostatic, counter-rotating
- Hydraulics Gear Pump 11 g.p.m. 1200 PSI triple filtration, 10 microns
- Undercarriage
- Make: Berco
- Track Frame: Rigid Frame
- Track Rollers: 4 Bottom
- Shoes per Track: 31
- Track Width x Lth: 7" x 48"
- Ground pressure: 5.9 PSI
- Service Refill capacity
- Fuel Tank: 6.5 Gal
- Hydraulic System: 19 gal
- Crankcase: 6 Qt
- Cooling System: 3 Gal.
- Frame 2" and 1/2" high tensile steel, unitized with full belly pan, hardened steel pins and bushings, designed for heavy mini dozer services.
- Miscellaneous
- Width: 29.5"
- Length (with blade) 8`
- Height: 4`7"
- Ground Clearance: 4"
- Gross Weight (with blade): 4360 lbs
- Travel Speed: 0-5 MPH
- Max Blade Lift: 13"
- Max Blade Drop: 10"
- Max Blade Angle: 30 degrees
- Max Blade Tilt: 25 degrees
- Blade 6 Way With Lift & Tilt
- Vandal Protection Kit
- Cold Weather Starting
- Hydraulic Oil Cooler
- Dry Cell Battery
- Operators Seat and Platform
- Turbo
- Tach/Hourmeter, Fuel, Water Temp, & Oil Pressure Gauge
- Heavy-Duty Engine Cooling System
- Rock Guards
- Arm Rests
- Warning Lights
- Hydraulic Oil Site Glass & Temp Gauge
- Auxiliary Hydraulics
- Safety Brake
- Operator Bumper Pads
- Powder Coat Finish
- Brass Wear Plates
- Winch Receiver Mounts front & back
- Tie Down Hooks (set of 4)
- Cup Holders (2)
- Blade Extension
- 12v plug-in
- Electric Winch
- Fire Extinguisher
- 3 LED Lights
- Strobe Light
- Cover
- Ripper Attachment
- EDC 2-Stick

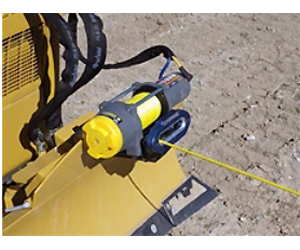

Sutter 300 Winch
Accessories
- Mountable in the front (on the blade) or back (under the seat).

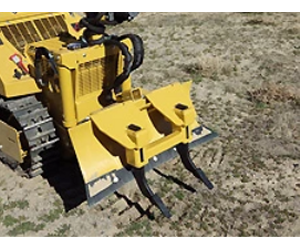

Sutter 300 Ripper
Accessories
Sutter 300 Extreme Cover
Accessories
- Stands up to snow, wind, rain, hail and bird droppings!
