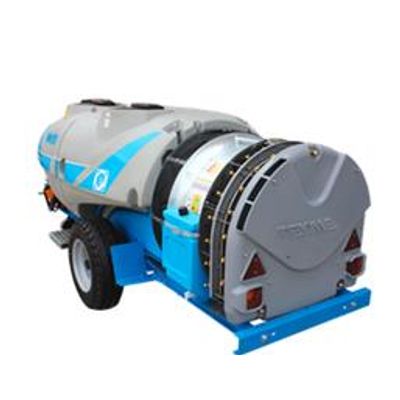

Ieolo Star - Mist Blowers
It avoids obstruction caused by leaves’ suction. Low power consumption. It stirs vegetation enabling a better distribution. Ø915mm air unit with 3 channels.
PROPELLER
Low consumption propeller.10 variable pitch blades from 25º to 45º, reverse system.
TURBO AUXILIARY CHANNEL Nº3
TURBO lower channel retrieves without extra consumption a 16,50% out of the air which in other sprayers is wasted, increasing its flow rate.
GEAR BOX AND CLUTCH
Gear box 2 speeds + neutral point.
Jusqu’aux 70 cv.
ZAMAK 3-shoes centrifugal clutch of smooth and progressive starting.
DEFLECTOR
Deflector in the impulsion.Provides radial air with turbulences and uniform distribution 50 and 50%.
BLOWER HOUSING WITH 3 CHANNELS
Ø915mm X 350mm aerodynamic blower housing, galvanized monoblock sort. 3 channels A, B and C. The channels’ system increases a 17% the air production . It prevents the faster upper air from bumping into the slower one of the central area.
