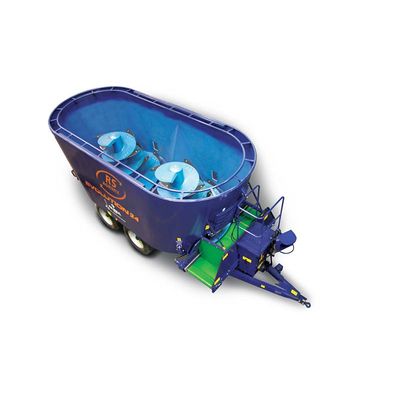

RS EVO-MIX - Mixer

A weighing system accurate to 1% is fitted as standard. The EZ2810 and EZ3610 are the standard boxes that are fitted to our machines. On all machines there is an option to fit a CowConnect herd management system. CowConnect’s features are it has a plug and play hardware, it allows you to set rations on the go, it has automatic data exchange, have easy access to your feed data and much more. We are the UK dealers for CowConnect and the system can be fitted to any mixer with ease.

All machines have a two-speed gearbox fitted as standard, which is operated hydraulically. This means the mixer can mix small mixes efficiently, be fully emptied and can be started when fully loaded with low horse-power.  Augers are driven by heavy duty 90 degree planetary gearboxes with speeds of over 40 revolutions per minute achievable.

All mixers have LED rear lights and a swivel ring hitch.

Smooth start up for conveyor system with rotex coupling and easy belt adjustment with the EVO scraper system.

The RS EVO-MIX is availble with lots of options including a grease bank manifold system, worklights, mudflaps, monitoring camera, wide-angle PTO, air brakes, wheel protectors, hydraulic door flap, ratchet handbrake, inspection panel, flow valves, mineral chute and high level road lights. A monitoring camera can be fitted anywhere on the machine, you can also have more than one. Please contact RS Agri Ltd for information on the full range of options for the vertical mixer.

The RS EVO-MIX Mixer is available in four different variants, the standard EVO-MIX, the EVO-MIX N, the EVO-MIX S and the EVO-MIX Static. All these machines are available with most options

EVO-MIX – 4 to 50 cubic metres, 2400mm wide

EVO-MIX N – 8 to 14 cubic metres single auger, 15 to 21 cubic metres twin auger, 2250mm wide

EVO-MIX S – Low height machine, bespoke sizes, single buggy axle

EVO-MIX Static – 4 to 50 cubic metres, ATEX rated electric motors as an option

Full width and optimum height augers are fitted into the EVO-MIX. This is essential for the correct mixing of material. In twin and triple machines, there is a cross over auger system for improved mixing. There are four knives fitted to each helix (full turn) of the auger, designed to give the most efficient chopping of fibre and a quicker mix of ingredients.  Apart from the top knife, there are two positions for all other knives to provide a more aggressive chopping action if needed. There are options to have the auger flights overlayed with stainless steel or edged with stainless steel (or both). There is an option is to have Tungsten Edged knives for a longer knife life.

A popular option are powerful tub magnets fitted into the tub wall.  They are a useful aid to removing wire and small metal objects that can be harmful to cows.  These can be fitted into new machines or older tub mixers as a retro-fit.

Please note that these are extremely powerful magnets and may affect those with a pacemaker or similar device.  Mobile electronic devices should not be placed near to the magnets.

Power steering or positive steering is an option particularly of benefit on larger mixers.  As part of the kit, the mixer is fitted with two hydraulic rams either side of the drawbar.  Turning circles and ease of use both forwards and in reverse are dramatically improved.

For today’s higher fibre rations, a straw ring holds light material inside the tub.

Two on all single auger models, four on twin and triple models. OPTIONS: If required contra knives can be operated hydraulically by using the switch box.

The choice of wheels depends on the amount of road work and the load carried; wheels can be specified to either lower the overall height of the machine or to raise the machine to feed into a higher trough.  There is also an option to have puncture resistant foam filled wheels.

• Single auger mixers are mounted on a single axle.
• To make a lower machine, this axle can be mounted at the rear of the machine.
• Twin auger mixers have commercial S-cam brakes (406×120) on all axles with a 19.5″ or larger tyre. Mixers up to 21m3 come on a single braked axle as standard. All twin auger models can come on a twin sprung axle or twin axle, rear steering system.
• All triple auger mixers come as standard on a triple axle system with the front and rear axles steering.  They have commercial S-cam brakes (406×120) on all axles with a 19.5″ or larger tyre.
• On twin and triple axle mixers there is an option for load sensing air-brakes.

A 1.1m door – wide enough to cope with today’s longer fibre mixes. OPTIONS: Multiple door positions are available, at the front, rear, sides and corners. One or more doors can be fitted on each machine.

An inspection platform is fitted on all mixers.

RS Agri mixers have as standard a 2.35m wide conveyor featuring external greaseable bearings and easy belt tracking. This can feed to the right or left side for on-floor delivery or low trough feeding. OPTIONS: For feeding into a higher trough or over a higher barrier, an elevator (0.7m to 1.7m long) on either the right or left side can be fitted.

• If there is a requirement for feeding to the rear a conveyor and/or elevator can be mounted.
• There is an electric shuttle box option that allows discharging to both sides of the conveyor simultaneously.
• A folding elevator can be mounted on the side of the mixer for trough feeding.
• A sliding front mounted conveyor or a sliding conveyor under a side door can assist with feeding into wider troughs.
• A Varilift conveyor offers the option of feeding various height troughs on both sides.
