RM Group - Model LTF 800 - Mobile Packaging Systems

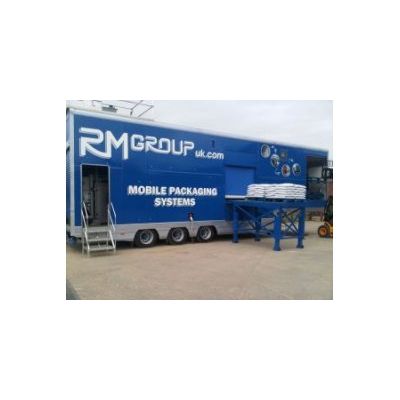

Our fully automated form, fill and seal portable packaging system, the LTF800. Our idea for the mobile bagger was born when we realised that there was a demand to bag product from source. Our customers wanted to reduce the cost of transporting product to bagging plants, they needed a robust packaging system that was also versatile enough to cope with rugged terrain, a mobile system that could be transported to various bagging sites and could be set up to bag product within an hour.
To this day, our mobile packaging systems serve quarry owners, aggregate suppliers, coal merchants, and salt suppliers in the UK, Ireland, France and Sweden. All of our lines are built specific to the customer’s bagging needs. We consider the product specification, bag type, and throughput before building a line. Whether you require a Form fill and seal for high throughput, automated bag placing for pre-made bags, or semi-automated lines for paper sacks, we have a mobile line suitable for your application.

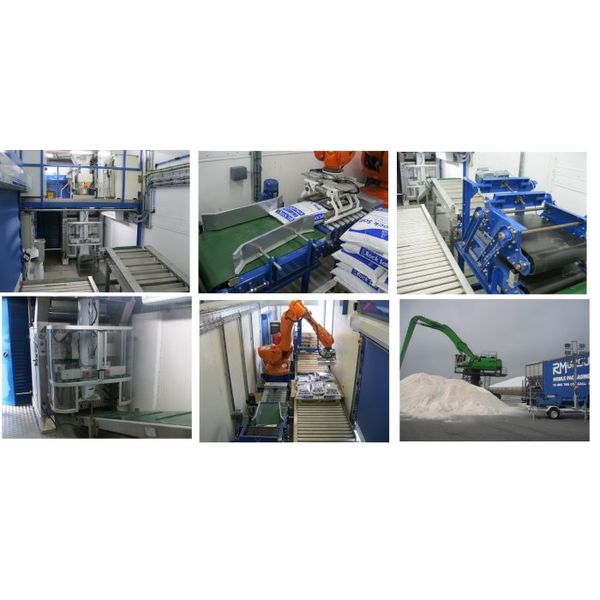

The LTF 800 portable bagging line epitomizes effortless bagging. The LTF 800 includes Form, fill and seal technology and ABB 6640 robot palletising system. It is capable of bagging 800 small bags an hour. Its reliability, high throughput and lower running costs prove to be advantageous to our customers.
Form fill and seal machinery utilise film on a reel. The doser weighing system feeds product into a forwming tube to which the film is formed and sealed around. We can also include a punched handle on 10Kg bags.
- Throughput : 800 25Kg Bags an hour
- MAX Bag size : 680x480mm
- Suitable Products : Cement, Rock Salt, Fertilizer, Animal Feeds Aggregates, Wood Pellets, Coal.
- FFS Reel Size: 1000mm(l)x600mm(d)
- Trailer Dimensions : 1st Trailer 13500mm(l)x2400mm(w)x5890mm(h)
- Equipment Included : Hopper, In-feed conveyor, Doser Weighing System, FFS - FPK 44, Bag flattener, Robot palletising, Pallet Magazine
- Required Personnel : One operator recommened to supervise line.
- Power Supply : 100Kva 60 amp 3 phase Diesel generator
- Stacked Pallet Height : 2000mm
- Loading Equipment : Handler required to fill hopper
- Out-feed equipment : FLT required to place empty pallets onto pallet magazine and off load filled pallets
