RM Group - Model LTF 1000 - Mobile Packaging Systems

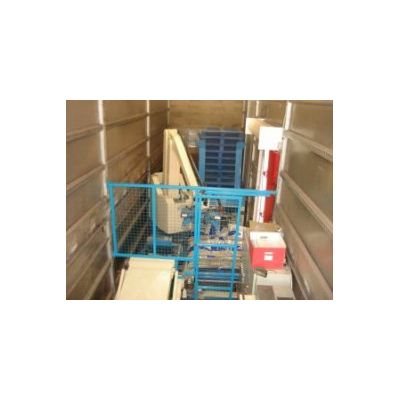

The LTF 1000 was the first of the mobile bagging series. It includes FPK 48 Form, fill and seal bagging machine and Fuji Ace robot palletising system. The LTF 1000 is split into three atriculated trailers. In the 1st trailer we built the in-feed hopper and conveyor, the 2nd trailer houses the form, fill, seal bagger and Fuji Ace robot palletisng system. We transfered the pallet out into a third trailer which accumulates a total of 5 filled pallets on powered pallet conveying. Theres also plenty of room for your generator and spare film in the 3rd trailer. All three trailers make this line easy to transport and relocate as everything is fixed to each unit.
Throughput: 1000 25Kg Bags an hour
MAX Bag size: 980x580mm
FFS Reel size: 1200(l)x600(d)mm
Products Packed: Rock Salt, Fertilizer, Animal Feeds Aggregates, Wood Pellets, Compost, Peat, Soil and more.
FFS Reel Size: 1000mm(l)x600mm(d)
Trailer Dimensions: 1st Trailer 13400mm(l)x2300mm(w)x5040mm(h)
Equipment Included. . .
3 Trailers comprising:
Trailer 1 - Hopper and In-feed conveyor
Trailer 2 - FFS - FPK 48, Bag flat & Turn, Robot palletising.
Trailer 3 - 5 Pallet accumulation, generator, film storage.
Required Personnel: One operator recommended to supervise line.
Power Supply: 150Kva 60 amp 3 phase Diesel generator
Stacked Pallet Height: up to 2000mm
Loading Equipment: Teleporter to load trailer 1.
Out-feed equipment: Teletruck.
