Mobile Sprinkler Systems

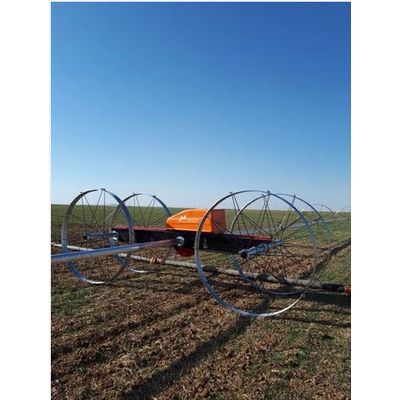

The Rolling Irrigation system and a set that allows the mobility of traditional pistols. The use of the Sprinkler System is favorable for small crops such as beans, peanuts, potatoes, beets, alfalfa, etc. and other vegetables less than 90 cm in size. The sprinkler heads are developed to prevent damage to the crop, to allow even watering, full balanced spraying and even drops that will give the effect of natural rain. Easy to use, can be disassembled for rapid movement or to overcome obstacles present on fields (electric poles, wells, buildings, etc.).
The operation can be operated by one person, and does not require a large power of water and resource.
Easy maintenance, with spare parts always available from our dealers.
Assets
- Watering area 32 meters
- Homogeneous watering
- Simple maintenance
- Spare part available
- Power 5.5 Hp.
- Economic
- Transport and quick assembly
- Wheel Diameter 195 cm
- Certifications
- 100% made in Turkey
After a desired duration of watering, the system is moved using the engine which will be put into operation only for this use.
Before each movement, the water connection must be closed and disconnected
The operator must ensure that the pipes are emptied (this process will only take 2 to 3 minutes).
- Centered by a four-wheel motorized chassis, it runs along two sides with 11.50-meter tubes up to a maximum of 400 meters.
- The tubes are equipped with gun and wheels, connectable.
- The system can be powered from the middle or from one end.

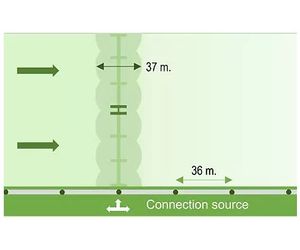

- A water line, fitted with a distributor every 35 meters, must be installed along the path.
- Each end of the system is terminated by suspension wheels.

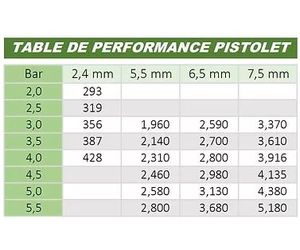

The gun model is chosen according to the source of water.

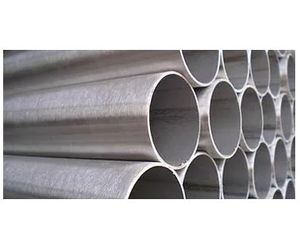

Galvanized aluminium pipes serving as a membrane for the suit and circuit for the conductivity of water..
Reachable, each hose is:
- 11,50 meters
- 110 Ø mm.

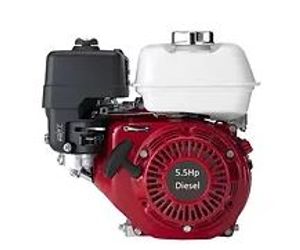

Honda GX 160 5.5Hp
