Model 00TRDPT - Pull Type Spreaders



New for 2011! BBI Pull Type Triad - Patented - Three Independent Hoppers - with Independent Variable Rate - Fertilizer Lime Spreader. Ideal for Precision Dry Material Application - Advanced Technology for the most sophisticated farmer! TRIAD is designed to keep up with the latest advancements in prescribed, guided, variable rate application of nutrients. Plug and Play TODAY with Ag Leader - more electronics options are in development! Call to find the best option for you!

(4518) = 45 Degree Sides, 18' Conveyor
(TRDPT) = Triad Pull Type - 14 Ton Walking Beam Suspension - Hydraulic Conveyor
(T-304) 304 Stainless, (T-409) 409 Stainless
Body Options

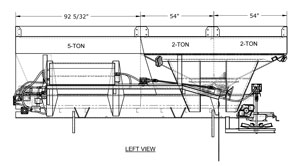

Triad - Patented Three Hopper Body with INDEPENDENT Variable Rate.  Capacity:  Main Hopper is 210 cu ft Struck, Hoppers 2 is 84 cu ft Struck, Hopper 3 is  84 cu ft Struck

Triad Model Specs
State of the Art - ELECTROSTATIC PAINT:   Carbon unit is totally primed with a rust-inhibiting alkyd primer and then top-coated with high gloss enamel.  Stainless unit includes all mild carbon steel parts primed and painted.    Color options include red, blue, yellow, black or green.  Some custom colors are available.
SPINNERS:   MagnaSpread system standard.  Overhead spinner motors are also standard.
ELECTRONIC CONTROL:   Electronics for Variable Rate Control and Guidance are included in the List Price.  Please contact BBI for .
BBI BINARY TM HYDRAULIC MANIFOLD SYSTEM for Triad:   Combines the hydraulic controls for the conveyor and spinners into one control manifold. It includes proportional manual speed control for both spinners and conveyor. Pilot operated relief is standard. A dump valve and a GR is standard for the conveyor. The modularity of the BBI Binary Manifold allows for quick easy conversion to GR option and to electronic control.
14 Ton Walking Beam Heavy Duty Suspension (21.5L 14 Ply Tires and 10-Bolt Hub)  Includes CV Joint PTO Shaft Series 6, Heavy Duty Jack and Large Perfect Hitch. (Pintle and Clevis)
