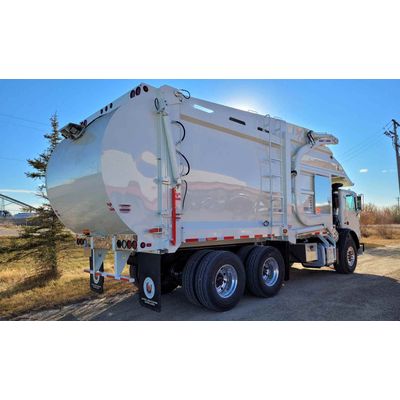

Model 40 Yard -Lightweight Front End Loader
Tailored to meet customer demand, the Universal FEL has set a new standard for front end loaders with its creative design. Its product features include. Single piece body wall design with no vertical seams. Arm & fork over height driver notification system. High clearance arms for more cab clearance. Huck bolted chassis mounted components. Innovative ram design to maximize volume and strength. 4" wide ram guides with chromium carbide surfaces. Removable lightweight side skirts. Premium coded wiring with junction boxes eliminated. Simplified hydraulic routing for enhanced servicibility.
BODY SPECIFICATIONS
- Body Capacity: 40 cu yd
- Empty Body Weight: 16600 lbs
- Tailgate: 5 cu yd
- Overall Length - forks perpendicular to the ground: 399 "
- Overall Length - forks parallel to the ground: 450 "
- Overall Height above frame - arms raised: 117 "
- Overall Width: 102"
- Inside Hopper Width: 89"
- Hopper Length: 80"
- Hydraulic Reservoir (Aluminum): 53 gal
- Chassis Wheel Base Requirement (regions may vary): 190"-210"
CONSTRUCTION
- Sidewall: 3mm Hardox 450
- Roof: 3mm Hardox 450
- Wind Guard: 3mm Hardox 450
- Floor: 4mm Hardox 450
- Hopper Floor: 0.1875" AR400
- Hopper Sides: 3mm Hardox 450
- Hopper Sliding Cover: 0.090 Aluminum
HYDRAULICS
- Ram: 5 1/2" 3 stage telescopic - all stages with chromed rods
- Arms: 4 1/2 " bore - chromed rod
- Forks: 3 1/2 " bore - chromed rod
- Hydraulic Hoses: SAE 100R12 Hoses with abrasion resistant cover
- Valve: Sectional High Flow Air Actuated Control Valve
PERFORMANCE
- Full Ejection Time: 20 seconds
- Hydraulic System: 70 GPM at 2,500 PSI working pressure
- Compaction Cycle: 18 secs at 1700 RPM
- Arms Rating: 8,000 Lbs
- Container Dump Cycle Time: 13 seconds
ELECTRICAL
- TruckLite lifetime LED lighting
- Premium coded wiring with junction boxes eliminated
- Proximity sensors - tailgate open, ram retracted, side door, hopper cover, over-height warning
Specification data on this website is provided for informational purposes and is not guaranteed to be accurate, may contain errors, and is subject to change without notice.
ATTACHMENTS
- Weigh Systems (Fork or Arm or Body Mount Available)
- Automatic Lubrication System
- Curotto Can Ready Kit (Can not included)
ELECTRICAL
- Dual Camera Spotlights c/w Housing at the top of Tailgate
- Multiple Camera locations: Back-up, Hopper, Street, Alley
- Ram Flood Light
- Container Dumping Flood Light
- Tailgate Mounted Rear Spot Lights
- Safety lights on Tailgate - alternate flashing or "Bus" style
HYDRAULIC
- Body Service Lift Kit - Hydraulic or Electric Power Pack
- Hydraulic Front Bumper Winch (8000 lbs)
MECHANICAL
- Dumping Mirror
- Air cylinder activated flip-up canopy
- Extended Forks - 10" longer than standard
- Greasing Points, 6 ground level points
- Tailgate Seal, full height
- Fire Extinguisher & Bracket (20LB)
- Tool Box, Aluminum, Plastic or Steel
- Emergency Warning Flares - Triangular
- Wash Out Tank
