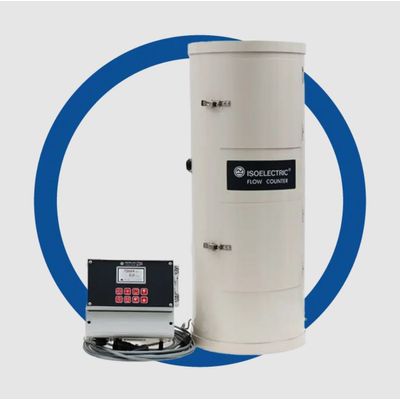

Model BF -Flow Counter
FLOW COUNTER Plus represents the best method for the weighing in continuous of granular and dusty materials with low moisture and a good flow, such as: cereals, fodders, plastic matters and other products. It`s ideal in these cases: 1) When the lorries are laoded in the limits of the law. 2) Instantaneous control for the on line working. 3) Capacity regulation. 4) Control of the quantity in the warehouses or silos. 5) Respect the process of the mix. 6) Mix in continuous of different products. 7) Dosage per cent of liquids in addition.
FEED: 220 VAC/12 VDC. FITTING 1,5 A
TEMPERATURE OF USE: -10 ÷ 60 °C
MAXIMUM CAPACITY OF THE ADDING MACHINE: 9.999.999 KG
RISOLUTION: 1 KG
MAXIMUM DISTANCE OF THE WEIGHING TUBE/PANEL: 500M
DISPLAY: 16X2 LCD ALPHANUMERIC
MEMORIES: 20
FORMULAS: 10
COMPONENTS (RELÈ IN OUT): 5
ANALOGICAL OUT (OPTION): 0 - 10V 4-20MA FOR INTERFACE WITH PLC
CONNECTING INTERFACE: RS 232
- Tube of measure in which passes the material for the weighing and there is also the electronic sensor
- Connecting cable between the tube of measure and the electronic control unit (standard l.10 mt) max 500 mt.
- Electronic control unit in order to see the data of time capacity (in kg/h or ton/h), the total weight, the kind of the product and the load cycle used in that moment (as optional there is also the back-board version and the printer with common paper)
