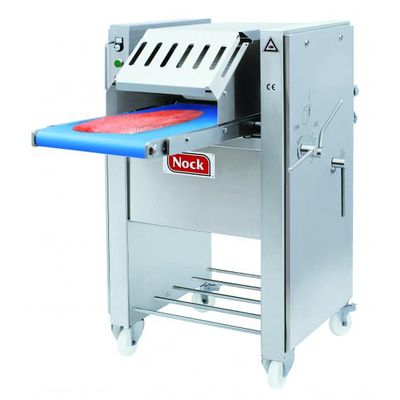

Model Cortex Cbf 496 -Automatic Fish Skinner

cutting width: 430 mm

cutting speed: 29 m/min

features: 3 methods of skinning:

• deep skinning with sharp blade
• thin skinning (shallow skinning) with sharp blade
• pulling-off the skin with blunt blade (silver skinning)

application:

automatic skinning machine with NOCK ACTIVE SKIN GRIPPER® optimized for skinning fresh and smoked salmon

• tooth roller (AISI 316L) with grooves and scraper comb (CF technology)
• NOCK ACTIVE SKIN GRIPPER® (AGS)  for thin skinning with sharp blade, no remaining skin on the fish tail
• blade gap infinitely adjustable
• spring suspended blade holder for perfect skinning results
• pressure units with pneumatic release; infinitely height adjustable
• special hard pressure roller for salmon, made of polyamide with very long lifetime and more pressure in the middle of the fillet (less pressure at the sides of the fillets = less loss when deep skinning)
• water cleaning unit for steady continuous operation when processing fresh fillets
• infeed conveyor and discharge conveyor; can be taken out of the machine within seconds without any tools
• NOCK POWER PLATES® for a machine construction which is easy to clean, for outstanding robustness and service friendliness
• NOCK EASY-FLOW® safety cover with pneumatic spring
• lockable castors
• stainless steel
• stainless steel bearings

• inflated pressure balloon
• discharge conveyor for removed skin
• additional possibility of positioning of output conveyor for easy bringing together skin and fillet
• double lane model (Cortex CBF 496/7 SALMON TWIN)
• NEW: Cleaning trolley for storage and cleaning of dismountable parts like: conveyors, belts, pressure roller and blade holder
