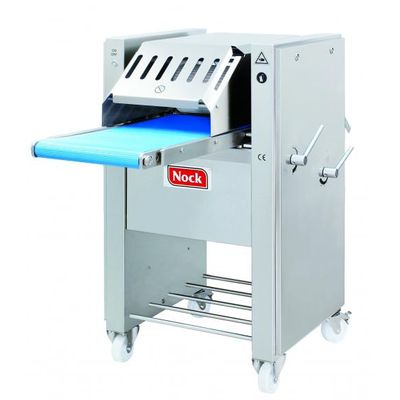

Model Cortex Cbf 496 -Fish Skinning Machines

cutting width: 430 mm

cutting speed: 29 m/min

features: 3 methods of skinning:

• deep skinning with sharp blade
• thin skinning (shallow skinning) with sharp blade
• pulling-off the skin with blunt blade (silver skinning)

application:

• special application for fish with thick skin, e.g. salmon trout, flat fish like plaice, sole, dorado etc.
• also suitable to skin fish with thin skin
• to skin fish fillets or one side of flat fish

• tooth roller (AISI 316L) with grooves and scraper comb (CF technology)
• water cleaning unit for steady continuous operation
• blade gap infinitely adjustable
• spring suspended blade holder for perfect skinning results
• special hard pressure roller for fish
• infeed conveyor and discharge conveyor; can be taken out of the machine within seconds without any tools
• NOCK POWER PLATES® for a machine construction which is easy to clean, for outstanding robustness and service friendliness
• NOCK EASY-FLOW® safety cover with pneumatic spring
• lockable castors
• stainless steel
• stainless steel bearings

• inflated pressure balloon
• discharge conveyor for removed skin
• transport roller with coarse or fine toothing
• turn around device for the automatic skinning of both sides of flat fish with 2 machines
• foot switch
• NEW: Cleaning trolley for storage and cleaning of dismountable parts like: conveyors, belts, pressure roller and blade holder
