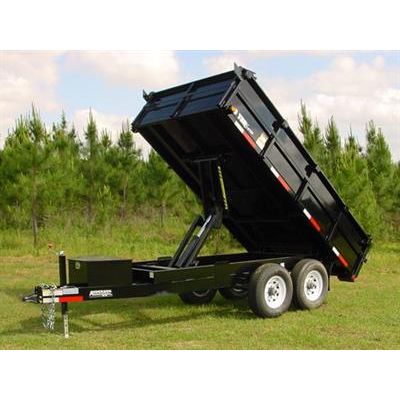

Model D6T Series - Dump Trailer
From Dump Trailers
16” white spoke wheels. Light protectors. Electric breakaway. E-Z Lube axles. Hydraulic scissor hoist.
-
Most popular related searches
Technical Specification
- G.V.W.R.-12,000 #
- G.A.W.R.(Each Axle) - 6,000 #
- Coupler - 2- 5/16” adjustable
- Safety Chain - 3/8” grade 43 with hooks
- Jack -7,000 # drop leg
- Frame - all tubing construction
- Tongue - 6” channel wrap around
- 12 volt front mounted self contained hydraulic pump system
- 2-way side and top hinge gate
- Axles - 2-6,000 # cambered brake axles
- Suspension - Slipper spring with equalizer
- Tires - ST235/80R/16” load range E
- Wheel -16” 8 bolt white spoke
- Deck - 12 ga. smooth steel
- Lights - D.O.T. stop, tail, turn, and clearance
- Elec. Plug - 7-way RV
- Paint - High solids acrylic enamel
- Stake pockets on sides
- Sides-24 “ 14 ga. smooth steel
Optional Features
- Higher sides
- Double barn doors
- Tarp system
- Charger
