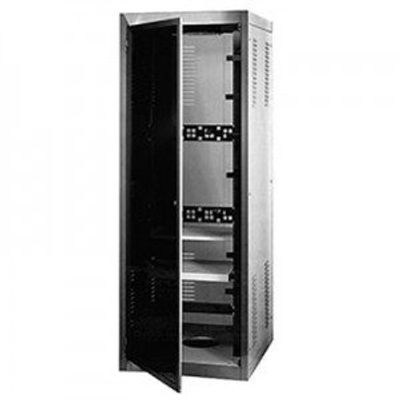

Model DC-8010 -84 Inch x 27 Inch Cabinet Rack

SHARE

Standard 84″ high cabinet rack with 27″ width and 30.75-inch overall depth. 78.75-inch panel height with choice of either 19 inch or 23 inch panel width. Sturdy all-welded steel frame. Four 4 inch diameter cable access ports in the top and one 9.56-inch square cable access hole in the bottom. Lockable ventilated front and rear doors. Two pairs of L-shaped panel mounting rails that accept either M6 metric or #12-24 threaded cage nuts and screws (order separately: #851-DLH [M6 cage nut], #9261 [M6 screw], #307 [#12-24 cage nut], #9260 [#12-24 screw]). Includes one #POS-194-S Surge Suppressed Power Outlet Strip. 1200 pound equipment load capacity. Accepts most Bud accessories.

Most popular related searches
External Size H x W x D: 84.06" x 27.00" x 30.75"
Internal Size H x W x D: 78.75" x 23.00" x 29.25"
Weight: 256 lbs
Color: Sand Textured Powder Coated
EIA Width: 19 Inches, 23 Inches
Panel Space Height: 78.75
Clear Inside Depth: 29.25
Door Style: Steel Front Door, Steel Rear Door
Lockable: Yes
Ventilated: Yes
Assembly: Welded
