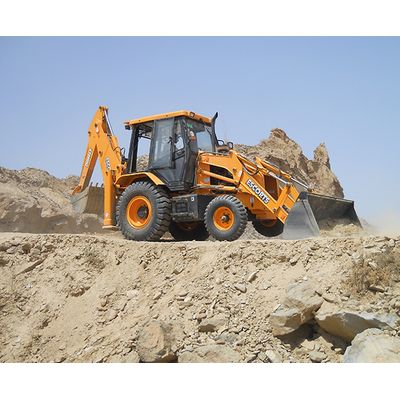

Model Digmax - II (2 WD) -Backhoe Loader

Hydraulics

Hydraulic Pump – Tandem Gear pump

Max flow  ( Both Pumps) 117.5 Lpm at 2200 rpm

Axles

Front axle with 16 deg oscillation

Rear Axle – drive axle , rigidly mounted

Transmission

Four Speed (4F, 2R gear) syncro Shift, reversing shuttle transmission provides superior traction and gradeability

Neutral start provision prevents starting if shuttle is engaged

Gear lever with transmission disconnect switch adds to the overall ease of gear shifting.

Tyres

Front ( std ) 9.00X16-16PR

Rear ( std) 16.9X28-12PR

Service Refill Capacities

Hydraulic system Oil - 150 ltrs

Fuel Tank- 134 ltrs

Engine Coolant- 15 Ltrs

Engine Oil – 11.5 Ltrs

Transmission Oil – 16.5 Ltrs

Rear Axle Oil – 17.1 ltrs

Brake reservoir Oil – 1.0 ltr

Loader Performance

Loader bucket capacity- 1.2 cu.m

Dump Height – 3.00 m

Bucket Breakout force – 6425 Kgf

Dump Angle – 45 Deg

Reach at Ground – 1.57 m

Lifting Capacity – 1980 Kg

Return to dig – Available

Self Levelling – Available

4 hydraulic cylinder geometry provides excellent visibility to loader

Excavator Performance

Excavator Bucket Capacity – 0.26 cu.m

Max dig depth – 4.8 m

Reach ground level to Rear wheel center – 6.92 m

Reach Ground level to slew center – 5.54 m

Reach Full Height to slew center – 2.88 m

Side reach to center line of machine – 6.00 m

Max working height – 6.22 m

Max load over height – 4.39 m

King Post Travel – 1.06 m

Bucket Rotation – 187 Deg

Bucket tear out force – 6018 kgf

Dipper tear force – 3250 kgf

Lift capacity to bucket pivot at full reach ( SAE J31)- 1554 kg
