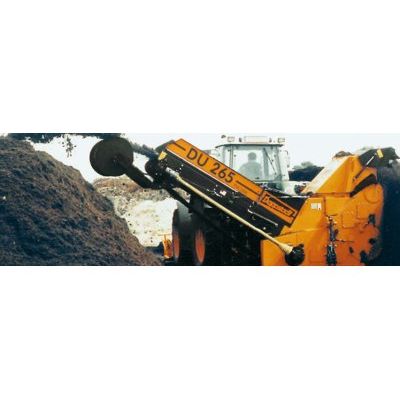

Model DU 265 -Windrow Turner

SHARE

The DOPPSTADT DU 265 windrow turner of the DU series are independent of the windrow shape – for windrows of different sizes and heights. The high throughput rates (600 m3/h), short setup times and flexible use on site are the main advantages.

Most popular related searches
windrow turner
windrower
windrowing
windrow
windrow composting
tractor
tractor linkage
grass cutter
compost process
compost processing

Two side milling cutter discs are equipped with wear-resistant tools, which can easily be replaced. By using different tool shapes the turners can be adapted to various requirements. Individual, exact building of the windrow thanks to the variable discharge by hydraulically driven discharge drum*:

  • Phase 1: Deflection downwards, basic substruction
  • Phase 2: Standard lateral windrow building
  • Phase 3: Deflection upwards, extended windrow building
The turner will fixed to the corresponding tractor by three-point linkage and a PTO coupling drives the entire unit at 1000 revolutions per minute. The capacity is designed to cope with the demands of continuous service. Reliable components manufacturerd by major suppliers of hydraulic systems, controls and safety systems on the basis of a thought-out construction guarantee very quick maintenance and short downtimes during operation. All the DOPPSTADT machines stand out for their easy operation and high mobility.
The DOPPSTADT DU 265 windrow turner of the DU series are independent of the windrow shape – for windrows of different sizes and heights. The high throughput rates (600 m3/h), short setup times and flexible use on site are the main advantages. Two side milling cutter discs are equipped with wear-resistant tools, which can easily be replaced. By using different tool shapes the turners can be adapted to various requirements. Individual, exact building of the windrow thanks to the variable discharge by hydraulically driven discharge drum*:
  • Phase 1: Deflection downwards, basic substruction
  • Phase 2: Standard lateral windrow building
  • Phase 3: Deflection upwards, extended windrow building
The turner will fixed to the corresponding tractor by three-point linkage and a PTO coupling drives the entire unit at 1000 revolutions per minute. The capacity is designed to cope with the demands of continuous service. Reliable components manufacturerd by major suppliers of hydraulic systems, controls and safety systems on the basis of a thought-out construction guarantee very quick maintenance and short downtimes during operation. All the DOPPSTADT machines stand out for their easy operation and high mobility.

Measurements
Chassis : 3-point linkage – rear
Total Weight : 10,913 lb

Drive
Engine Drive : by PTO shaft of tractor
Engine Drive Shaft : 110 – 130 kW (150 – 180 hp) at 1,000 rpm

Equipment
Additional Equipment : hydraulically driven discharge drum, long grass wedge

Milling Cutter Disks
Cuttingdisk Count : 2 pieces
Cuttingdisk Speed : approx. 260 rpm
Cuttingdisk Diameter : 1,150 mm (3` 9") each
Cuttingdisk Tools : 6 teeth per milling disc, 3 short or long blades

Conveyor
Materialhandling Type : vulcanized profiled belt, bars, hydraulically foldable
Materialhandling Width : 800 mm
Materialhandling Belt Speed : ca. 6,8 m/s
Materialhandling New Windrow Height : up to ca 3.200 mm

The windrow turners will used for turning and processing compost windrows, contaminated soil or for windrows of shredded green waste or waste residues and biowaste.
  • high flexibility thanks to compact construction
  • easy transport and quick set up due to hydraulically foldable elements
  • blade-shaped milling tools – resistant to wear
  • easy maintenance and replacement on free accessable cutter discs
  • high adaptability thanks to different tool tips
  • discharge roller* for variable windrow heights
  • long grass wedge for stringy material
