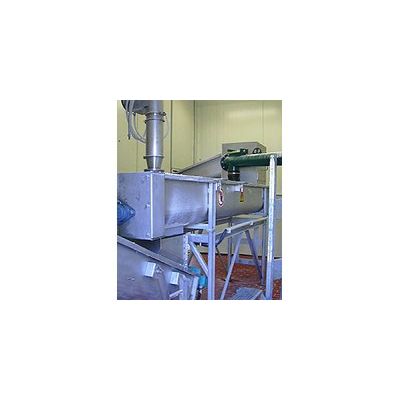

Model DWPM -Double Shaft Paddle Mixer
Conveyor systems for mixing and transporting various media. Our DWPM type double shaft paddle mixers have been conceived for continuous mixing of sludge and additive materials. The U-shaped double trough is equipped with two horizontal paddle shafts. They are supported by ball bearings at the headers on both sides. The shaft penetration at the end of the trough is sealed with a packing gland. Special sealing systems are also available.
Variants:
- Mixing tools made of specialised materials
- Various options for bearings and drive systems
Equipment:
Funnels, chutes, and hoppers; pivoting, rotating, and travel chassis, manual or electric; moistening spray hoods; pushers; intermediate discharges; mobile mixers; electrical and control elements; speed monitoring; overfilling protection; insulation – cooling – heating.
Advantages overview
- Low energy input for high conveying capacity
- Hygienic conditions are improved with a closed conveyor system
- Intermediate discharges can be configured easily
- Low wear operation
Dimensions are variable, and are adapted to each application.
