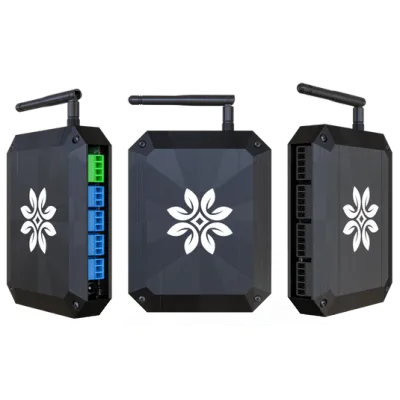

Model Flux -Smart Irrigation for the Modern Grower

Flux brings the Nuravine 2.0 platform to life, offering unparalleled customization in hardware and software. It can tackle any logic problem with sensors and valves, providing unrivaled control, whether used alone or with our dosing systems.

Satellite Tank Management

Manage Multiple Tanks with solenoid control and up to 4 level sensors.

Zone Feeding

Accurately feed rooms with solenoids flow meters and pressure sensors.

Automated Recirculating

Fully Automate Fills, Drains and Changeouts on your recirculating system.

Automated Batch

Mix multiple batches and send to zones with the help of the Flux!

Flux's true power comes from its advanced rules engine. Whatever unique process you want to automate, you can make it happen with Flux.

Triggers

Triggers can be sensor readings or timed events that activate automations, you can even have multiple triggers at the same time like if it's 8pm and the temperature is above 75 turn on your chiller.

Actions

Actions are tasks like opening valves, turning on pumps or activating doses. You can have as many actions as you want for each rule and they are performed in sequence allowing you to create almost any automation process you can think of.

Linked Devices

The Flux enables sharing resources with other Flux and Aurora devices. For example, you can open a valve on one Flux, use the Aurora to dose nutrients, then deliver through a valve on a different Flux.

Push-Button Control

Sometimes you just need to fill, drain or clean a tank on command. With Flux it's as simple as creating the rule and then pressing “play” on your phone or computer.

Run Multiple Rules

The Flux lets you trigger rules based on time, sensor readings, or both. Set as many as you want. Smart software ensures if two activate simultaneously, one happens right after the other.

Schedule Weeks Out

The Flux schedule lets you automate rule changes weekly or even daily. The schedule switches rules automatically, so operating becomes effortless once configured.

24V 6A power supply

16x 24V AC/DC Outputs

4x 4-20 mA sensor inputs

Connect up to 32 devices with Modbus

2.4 Ghz Wifi

Communicates wirelessly with Aurora
controller or additional Flux devices

Mounts easily with Din rail and bracket system

Dimensions: 143 x 112 x 50 (mm)

Units: psi/bar/atm, lbs/kg, gal/L, F/C, uS/mS/ppm(500-640-700)
