Model HD Series - Dump Trailers

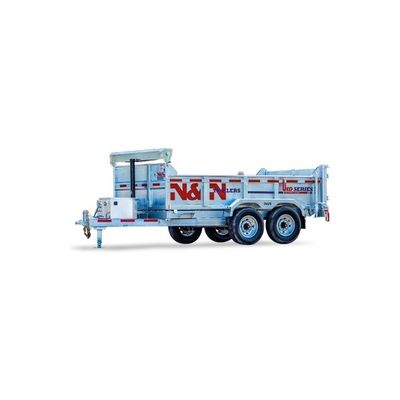

HD Series Galvanized Dump Trailer (10K, 14K, 16K, 21K, 24K). A trailer that stands out from the competition. A more rugged frame of 26-inch tubes made with ¼-inch-thick steel is stronger than a C frame. Its double perimeter strengthened with 4 steel beams (1/8 × 2 × 4 in.) ensure that the weight of wide loads rests on the steel tubes.
Greater Volume Load
With their more massive front and back gate, as well as higher sides than those of competing trailers, our HD Series galvanized trailers (10K, 14K, 16K, 21K, 24K) can accommodate a greater load volume.
Safe Loading/Unloading
Stabilizer legs reduce stress on the towing vehicle and prevent it from lifting.
Secure Loads
Galvanized steel D-rings anchored to the floor let you securely tie down your loads.
Dry Load
The tarp with aluminum cover provide you a dry load.
Easy loading/unloading
Heavy duty loading ramps stowed under the deck rather than on the sides of the trailer slide easily into place for loading/unloading equipment.
NEW OPTION!
THE “COMBO GATE” RAMP
A new loading option available for your Pro Series tilt trailer.
Don’t wait any longer and take advantage of the multiple benefits of this “combo gate” ramp.
“Combo gate” door offered as an option
Including integrated ramps of 60 inches, the “combo gate” doors support up to 8500 lb. They offer a spring-assisted opening, a low profile and lowered axles. This option makes your work much easier.
Multi-use rear door
Revolutionizing the loading and unloading of materials, this new “combo gate” ramp integrated into the rear door allows you to optimize your time and space.
Our HD Series galvanized dump trailers (10K, 14K, 16K, 21K, 24K) offer you a vast array of standard and optional features that will make safely hauling your equipment, tools and material a lot easier. Configure your HD Series galvanized dump trailer to suit the specific needs of your excavation company, construction firm or farm operation.
- Heat shrink tube and connectors
- Aluminum toolbox
- HMV bumper pucks
- Checker plate fenders 1/8
- Laser cut footstep
- Spare tire (optional)
- Auxiliary battery cable
- Smart battery charger
- Cold weather harness
- Zinc backplates
- 24 or 36 in. Mesh side extensions (optional)
- 12k zinc drop leg jack
- Galvanized ramps undermount
- Increased load capacity
- Hydraulic jack (optional)
- Galvanized axles
- Double acting door
- Aluminum tarp protector
- 7 or 12 tons telescopic cylinder
- Hydraulic motor
- Reinforced suspension bracket (3/8 in)
- Auxiliary battery cable
