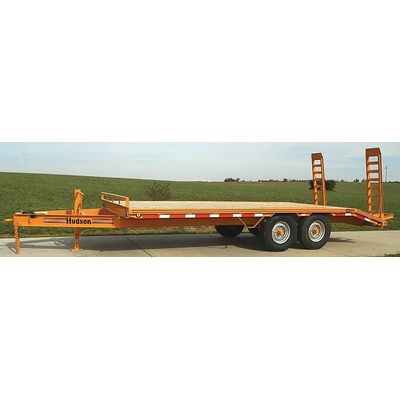

Model HTMBH -6 Ton Capacity Medium Duty Deckover Trailer

Overall Length: 27`

Deck Length: 21` (18` Flat w/ 3` Beavertail)

Overall Width: 96"

Deck Width: 96"

Deck Height: 31"

Beavertail: 3` w/ wood

Ramps: 5` Cleated w/ Spring Assist

Hitch: Adj. 2 1/2" Eye

Hitch Height: 17" to 21"

Tongue:  Cold Form w/ Tool Tray

Axles:  (2) 6K E-Z Lube Dexter,  w/Brakes

Suspension: Multi-Leaf Spring

Brakes:  Electric 12" x 2" , w/ break-a-way

Wheels: 16" x 6" Single 8-Bolt

Tires:  225/85R 16" 10-PR

Jack Capacity:  12,000 lb. w/ Drop Foot

Main Frame:  8" Channel @ 11.5#

Crossmembers: 4" Channel @ 4.5#

Side Rail: 6" Channel @ 8.2#

Decking: 2" x 8" Treated Pine

Tie Downs: Rub Rail w/ Stake Pockets

Lights: DOT Sealed Rubber-Mounted, w/ Conduit

Colors: Yellow or Black

8WGN - Gooseneck w/Adjustable, 2 5/16" Ball Hitch

LTBL - Lockable Toolbox Lid

8WOD - 2" x 8" White Oak Deck

MW - Modular Wiring

8WARL - Additional Ramp Length
(1` Maximum)

WIR - Wood Insert Ramps

2 5/16" HDBH - 2 5/16" HD Ball Hitch
(20K Forged)

3" IH - 3" Eye Hitch

2 5/16" HDBH - 2 5/16" HD Ball Hitch (20K Jaw Type)

STM - Spare Tire Mount

STR - Spare Tire & Rim

8WADL - Additional Deck Length (4` Maximum)

8W102 - 102" Wide

TC - Trickle Charger for Break-A-Way

8WSATG - 8` Wide Spring Assisted Tailgate

8WSSATG - 8` Wide Split Spring Assisted Tailgate

3R - 3rd Ramp

LL - LED Lights

CO - Color Options: Red, Blue, Green, Kubota & Ditch Witch Orange
