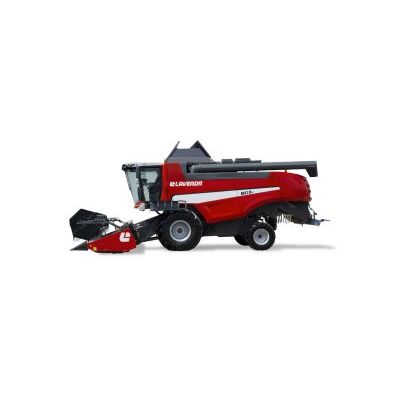

Model M410 LC -Hillside Combines

SHARE

Continuous feed and uniform cutting even in difficult conditions.Large -diameter auger: thanks to a large-diameter auger with larger flighting, it allows for increased and improved feeding capacity.Open-profile frame: provides better visibility (facilitating crop flow control) and improves the handling of long-stemmed crops. The frame is designed to simplify hitching and unhitching the cutting header.

Most popular related searches
soil compaction
tine
crop improvement

Header /machine coupling: the cutting headers are hitched by a centralized multiple coupling system for all electric and hydraulic controls. This makes hitching a quick, simple and precise operation.

Hydrostatically driven pickup reel: it is equipped with newly designed tines, anti-clogging blades (Schumacher system) and simplified drives. This combination of components improves balance and the efficiency of the pickup reel on laid crops and is practically zero maintenance.

Levelling

The M 410 LC, M 400 LC and M 400 LCI models rise above the group because of Laverda’s exclusive and patented, lateral action levelling system, based on 2 movements: machine body levelling, and table levelling.

The lateral levelling system uses two reinforced joints that, through electrohydraulics, provide a lateral adjustment of the machine on different gradients of the terrain. This enables a transverse levelling of up to 20% and makes it possible to work well on European hillsides, assuring high performance in total comfort and with the maximum safety.

Excellent stability and minimal soil compaction are guaranteed by large tyres (800/65 R32). The lateral levelling system reduces outer dimensions to just 3.50 m (machines with 5 straw-walkers), ideal for road travel even on narrow roadways. External dimensions can be further reduced by up to 3.30 m, opting for a different size of front tyres (710/75 R32 or 650/75 R32). The new final drives, a Laverda exclusivity, are equipped with 10 bolts, and are standard on the three models.
