Huber Technik Vertriebs GmbH

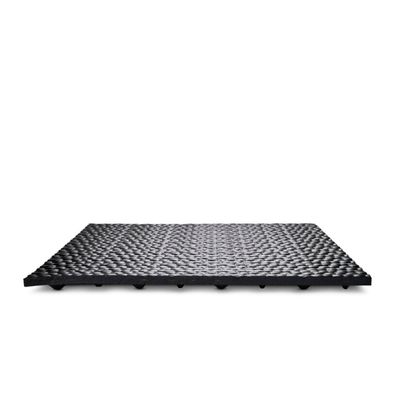

Model N20 -Comfort Roll

SHARE

The comfort roll N20 has a pleasant softness and offers the best lying comfort. The profile with studs of different lengths on the underside creates a soft and pleasant lying surface. Cows walk, stand and lie safely on the comfort roll N20, which is easy on the joints. The comfort roll N20 can extend lying times of the animals and thus increase performance. The cubicle will be produced without slope up to a width of 3.00 m. At a fixed width of 1.85 m, there is a slope on both sides. Liquids run off. All Huber Technik stable coverings are PAK neutral and DIN compliant. They are laid on level floors (concrete). The installation of the roll material is simple and time-saving.


Most popular related searches

Application area

High stalls for dairy cattle and young cattle

Suitability

New construction and renovation

Thickness

Cover sheet: 10 mm

Studs: 10 mm

Total: 20 mm

Weight: 12.8 kg/sqm

Dimensions

Length: 10 m to 50 m

Width: 1.20 m, 1.50 m, 1.60 m, 1.70 m, 1.80 m, 1.85 m, 2.00 m to 3.00 m

Slope

At a width of 1.85 m, the pavement has a slope at the head and foot on the outer 100 mm

Profile

Top: hammered profile

Center: fabric reinforcement

Underside: 10 mm studs

Penetration depth

10.6 mm according to DLG test method

Special Features

+ slope on both sides at 1.85 m width

+ solid rubber profile

+ easy installation

Installation

Rolled goods

Warranty

10 years
