Model Scout -Rubber Track Mounted RC/RAB Drill

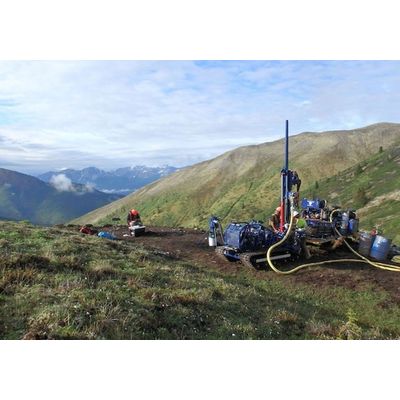

MPP’s latest compact, helicopter portable, rubber track-mounted RC/RAB drill, the Scout is ideal for all stages of exploration. The Scout features a 100+ meter depth capacity, 45 HP Kubota diesel engine, modular design and MPP’s new ST rubber tracks. The all-terrain ST tracks provide the machine with excellent climbing abilities, higher driving speeds and low ground pressure. The rig can be broken down for helicopter and/or fixed-wing aircraft transport (all modules are compact and under 1000 lbs.) and assembled in the field, whether that is on the side of a mountain in the Yukon or in the jungles of the Congo.
- MPP ST low impact, all-terrain rubber tracks
- Modular design with a total machine weight of only 3525 lbs.
- 100+ meter depth capacity
- Easily adaptable for RAB (rotary air blast) and RC (reverse circulation) drilling
DEPTH CAPACITIES: Based on 300 CFM / 200 PSI compressor
3-1/2" (89mm): 330 ft / 100 m*
: *Depending on ground conditions
PRIME MOVER
Model: Kubota V1505T, 4 cylinder, turbo charged diesel engine
Power: 44.2 HP @ 3000 RPM
TRACK PACKAGE
Model: MPP ST-48 Rubber Track
Design: Hyd. driven piston motors, low impact rubber track, 2 speed drive
Drive speed: 4.3 KM/HR
Drawbar: 7962 lbs.
Ground pressure: 2.5 PSI
Remote drive: Miratron radio remote package w/ manual control
TOP DRIVE ROTATION UNIT:
Max torque: 1500 lbs /ft
RPM: 0-120 RPM
Spindle: Floating w/ optional NWJ (RAB) or NSE2-7/8" (RC) thread
Rotation motor: Char-Lynn 6K series
MAST AND FEED
Design: Cylinder feed
Pullback: 16,200 lbs.
Pulldown: 8,250 lbs.
Feed speed: 0-76 fpm
Feed stroke: 84"
Working angle: 45 to 90 degree
Mast dump: 40" stroke
SWIVEL
Design: Optional 2JW (RAB) or Combination air inlet/sample discharge (RC)
Spindle: Floating w/ (4) keys and box lower connection
Discharge: HD 2" Gooseneck assy.
WINCH
Design: Warn Series 6 Hydraulic Winch
Pull capacity: 6000 lbs.
Accessories: Roller fairlead & 5/16" x 100 ft wire rope
HYDRAULIC SYSTEM
Design: Fully hydraulic, no electronics, open loop
Capacity: 20 GPM
System pressure: 3000 PSI
Filtration: 10 micron
Components: Sauer Danfoss, Char-Lynn & Parker
Heat exchanger: Air:oil
CONTROL PANEL
Panel: Feed, rotate, setup functions, & E-stop
Gauges: Rotation, holdback & air pressure
WATER INJECTION PUMP
Pump model: FMC A0413C 2 cyl.
Max flow: 5 GPM
Max pressure: 550 PSI
LOWER MAST CENTRALIZER
Opening: 4-1/2"
WEIGHT: 3525 LBS
DIMENSIONS: 58" W X 122" L X 80" HT
INCLUDED COMPONENTS
Accessories: Rod guard, travel lights
Stabilizers: Hand jack style
Fuel tank capacity: 10 gallon
OPTIONS
Compressor package
Booster package
Cyclone & sample splitting equipment
Diamond core package
Geotechnical package
