Model TXC/TXP -Bio Shredders

SHARE

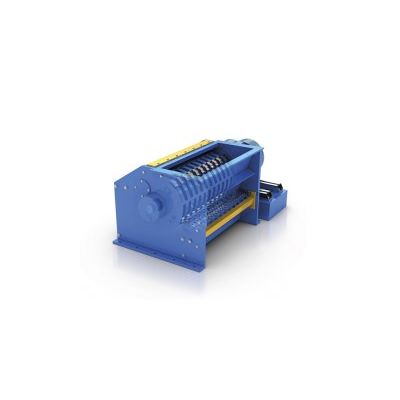

Bioshredders TX are high speed swing hammer mills. The material is loaded on a vibrating table or conveyor belt that distributes the material for smooth and efficient feeding. The material falls into the shredder, where the hammer rotor shreds and crushes the material with a special system maze. It is a sturdy machine, and used especially in biomass and bioenergy industry

Most popular related searches

RECOMMENDED

Pre-shredded materials with a maximum size 300 mm.

SHREDS

Wood:Wood, bark, biomass.
Paper: Paper, cardboard.

OBTAINS

Fractions of: 10 – 100mm.

INDUSTRIES

  • Sawmills
  • Paper mills
  • Pellets
  • Briquettes
  • High capacity
  • Reduces bark
  • Easy maintenance
  • Low maintenance costs

TXV

  • Entry 1470-1970×600
  • Weight 10.050-18.000kg
  • Main engine 132-315 Kw
  • Rotor 1100 x 1000-2000

TXP

  • Entry 675-1500 x 550
  • Weight 6.500-7.600kg
  • Main engine 90-250 Kw
  • Rotor 800 x 700-1000-1500

TXC

  • Entry 545-1085 x 400
  • Weight 1.450-2.250kg
  • Main engine 22-90 Kw
  • Rotor 600 x 500-1000
