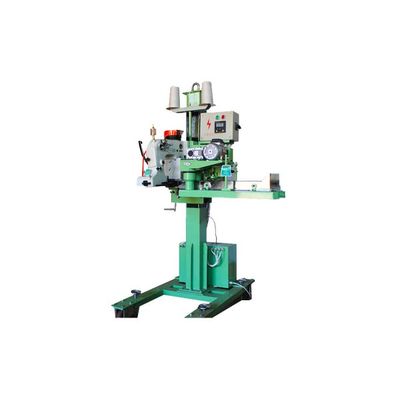

Model TYFB-BK35-6A -Automatic Bag Sewing Machine
These bag sewing machines are used to close open bags for paper, textiles, paper-plastic laminate material, aluminum coatings material, etc. They can integrate automatic sewing head and be equipped with optional edge folding devices, tape closures. They can provide both plain stitch closing and crepe-tape closing. Combined with the wxtytech conveyor system, can create a high speed and efficient automatic bag closing system.
Most popular related searches
- Machine Frame
- High speed sewing machine
- Electric control box
- Sewing Head Height : 720~1220mm (from the ground to the machine needle)
- Brake Motor : 4P, 3PH, 0.75kw/0.4kw (depending on conveyor)
- Start-stop : photoelectric switch
- Stitching Head : GS-9C type
- Max Speed : 2700 r.p.m.
- Stitch Width : 7 to 10.5 mm (standard setting 10 mm)
- Stitch Type : single needle double stitch chain stitch (single stitch on special order)
- Cutter Type : cylinder driven cutter
- Air Pressure : 0.4 MP/cm²
- Air Consumption : 3.5 NL/min
- Lubrication System : automatic oil bath system
- Oil Filling Volume : 1740 cc (approx.)
- Machine Pulley Diameter : 100mm, stepless pulleys to be specially ordered
- Machine Needle Type : DR-H30#26
- Sewing Thread : synthetic or cotton, 20/6, 20/9
