Escorts Kubota Limited, formerly Escorts Limited.

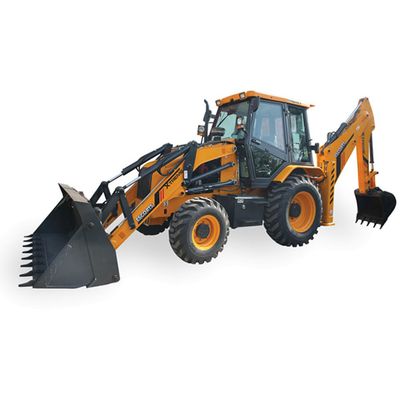

Model Xtreme -Backhoe Loader
Optional Accessories - Rock breaker, Ripper Tooth, Extendible dipper, AC Cabin, Trenching buckets – 0.09 cum, 0.12 cum, 0.18 cum, 300 mm Trench Bucket (Optical Fibre Cable Laying Application), Coal Bucket - 1.5 Cum, Rock Bucket - 0.26 Cum., Engine - Proven, powerful and fuel efficient Escorts, E4.368 TCI, Turbocharged engine, Gross Power – 90 HP at 2200 rpm, Max Torque (Gross): 400Nm @ 1300+100 rpm, Meets Bharat stage-III (CEV) emission norms.
Most popular related searches
Hydraulics
- Hydraulic Pump – Tandem Gear Pump
- Maximum flow (both pumps) 117.5 lpm at 2200 rpm
- System main relief setting 225 bar
- Fixed flow, open centre two pump unloading energy efficient hydraulic system
Axles
- Front Steer axle with 16 deg oscillation for maximum ground contact in undulated condition
- Rear Drive axle, rigidly mounted to chassis
Transmission
- Make: Carraro with Torque converter ration - 3.01:1
- Four Speed (4F, 4R gear) Syncro shift reversing shuttle transmission provides superior traction, gradeability, higher force while entering pile or during dozing operation
- Gear lever with transmission disconnect switch adds to the overall ease of gear shifting
Tyres
- Front (Std) 12.50 x 80 x 18, 12PR
- Rear (Std) 16.9 x 28-12PR (Industrial)
Service Refill Capacities
- Hydraulic system Oil - 110 litres
- Fuel tank- 134 litres
- Engine coolant- 15 litres
- Engine oil – 12 litres
- Transmission Oil – 18.5 litres
- Rear axle oil – 17.1 litres
- Front axle oil – 9.1 litres
- Brake reservoir oil – 1.1 litres
Loader Performance
- Dump Height (Cutting edge) – 3.00 m
- Load over height (cutting edge) – 3.51 m
- Pin height (Cutting edge) - 3.72 m
- Pin forward reach - 0.41 m
- Reach at Ground – 1.57 m
- Max reach at full height - 1.22 m
- Reach at full height - Bucket dumped 0.85 m
- Below ground level dig depth - 0.13 m
- Rollback at ground - 45 deg
- Dump Angle – 45 Deg
- Bucket Breakout force – 6425 Kgf
- Loader arm breakout force - 6777 kgf
- Payload – 1980 Kg
- Return to dig – Available
- Self Levelling – Available
- Loader bucket capacity- 1.2 cum
Excavator Performance
- Max dig depth (Bucket in dump Position) – 4.80 m
- Reach ground level to Rear wheel center – 6.97 m
- Reach Ground level to slew center – 5.65 m
- Reach at full height to slew center – 2.23 m
- Side reach to center line of machine – 6.00 m
- Max working height (Stab’s fully out) – 6.30 m
- Max load over height (Stab’s fully out) – 4.39 m
- King Post Travel – 1.6 m
- Bucket Rotation power – 187 Deg
- Bucket tear out force – 6018 kgf
- Dipper tear out force – 3250 kgf
- Lift capacity to bucket pivot at full reach ( SAE J31)- 1554 kgf
- Co-axial Carriage
- Excavator Bucket Capacity – 0.30 cum
