  4. Westrup - Model AS - Modular Cleaner

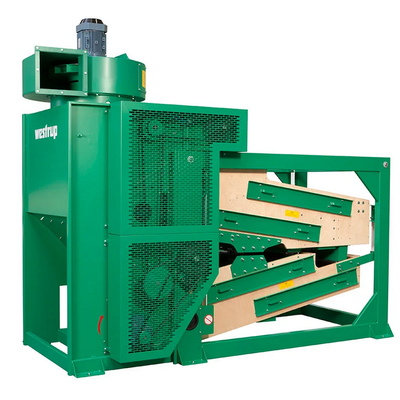

WestrupModel AS -Modular Cleaner

SHARE

The AS pre-cleaner is designed to be used mainly in grain store applications where it is desirable to pre-clean the incoming grain. The ASpre-cleaner is designed to be used mainly in grain store applications where it is desirable topre-clean the incoming grain. For capacity and all other specific information see the back page.

Most popular related searches

The AS pre-cleaner offers the below features:

  • Integrated inlet section with weight loaded valve (AS-1000) or with feed roll and weight loaded valve (AS-1500).
  • Aspiration chamber with integrated screw with external outlet for removed product on the right- hand side of the machine.
  • Screen section consisting of two sieveboats with screen change from either side of the machine.
  • Upper sieveboat with 2 scalping screen layers with 9o inclination.
  • Lower sieveboat with 2 sand screen layers with 11o inclination.
  • In total 4 screen segments with standard perforations above 2 mm; all screen segments with rubber ball cleaning.
  • Prime product outlet placed under the machine for the entire width of the sieveboat.
  • Fixed drive of sieveboats and screw.

The machine is of steel construction with sieveboat of laminated wood.

  • Inlet hopper
  • Feed roll for AS-1000
  • Adaptive aspiration control system (AAC)
  • Fan with motor
