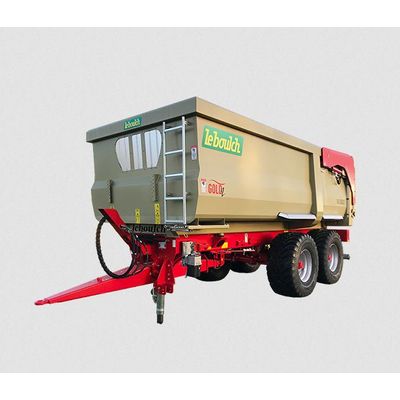

Advantage - Model Gold2 XXL 58D22 - Monocoque Muck Spreader
FromJLB Leboulch
Tapered monocoque body made of 4-mm high tensile steel (grade 420; side walls and floor) Body dimensions: 5.80 m long; 2.25 m - 2.30 m wide and 1.50 m high.
Most popular related searches
agriculture tipping trailer
grain chute
livestock trailer
muck spreader
tractor hydraulic
tractor
livestock
- Chassis made of 300 x 100 x 10 mm tubes with industrial 2K paint and finishing lacquer
- Tipping trailer designed for a technical payload of 15 t and a volume of 20 m³ DIN.
- Sprung drawbar for maximum comfort and driving stability.
- Bogie with parabolic leaves.
- ADR 100 x 2000 - 8S axles with 400 x 80 mm hydraulic brakes.
- Wheels 560/60R22.5 (Alliance) 885 161 D (Ø 1,244 x 555 mm, 6,800 kg per wheel at 40 km/h)
- 1-part hydraulic rear door with seal, fall back security with steered valve and 500 x 500 mm multi-position central grain chute (notches).
- Oil-fed tipping system with direct connection to the tractor: 26-l hydraulic ram
- Sight window on body (with perspex plate and galvanised protective grating)
- Pre-equipment for weight transfer.
- Hydraulic parking stand.
- 2020 certification with rear bumper.
- Easy maintenance and cleaning. Machine delivered with its spare parts book to make the replacement of wear parts easier.
- Industrial manufacturing in large series, continuous welds.
- 3-year warranty (see terms)
