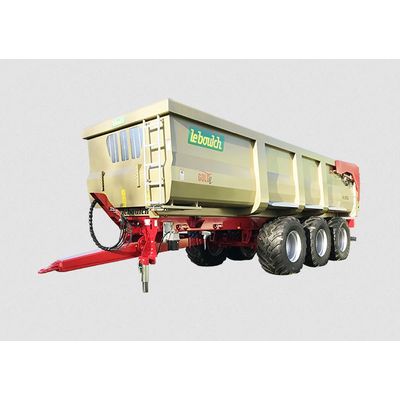

Advantage - Model Gold2 XXL 85T32 - Monocoque Muck Spreader
FromJLB Leboulch
Tapered monocoque body made of 4-mm high tensile steel (grade 420; side walls and floor) Body dimensions: 8.50 m long; 2.25 m - 2.30 m wide and 1.50 m high.
Most popular related searches
- Chassis made of 300 x 100 x 10 mm tubes with industrial 2K paint and finishing lacquer
- Tipping trailer designed for a technically permissible payload of 22 t and a volume of 29 m³ DIN.
- Sprung drawbar for maximum comfort and driving stability.
- Running gear (road tridem with rods) with parabolic leaves with free-steering axle.
- ADR 130 x 2100 - 10S axles with 400 x 80 mm hydraulic brakes.
- Wheels 600/55R26.5 (Alliance) A885 165D (Ø 1,346 x 611 mm, 7,000 kg per wheel at 40 km/h).
- Ø 50 mm bolted flat eyelet.
- 1-part hydraulic rear door with seal, fall back security with steered valve and 500 x 500 mm multi-position central grain chute (notches).
- Tipping by 1,000 rpm compressor (with hydraulic control): 62-l hydraulic ram.
- Sight window on body (with perspex plate and galvanised protective grating)
- Pre-equipment for weight transfer.
- Hydraulic parking stand.
- 2020 certification with rear bumper.
- Easy maintenance and cleaning. Machine delivered with its spare parts book to make the replacement of wear parts easier.
- Industrial manufacturing in large series, continuous welds.
- 3-year warranty (see terms)
