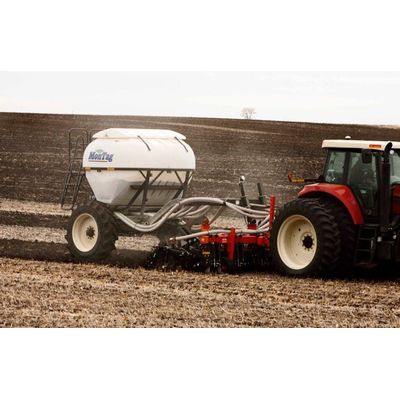

Montag - Model GEN I -Dry Fertilizer System

Stainless Steel Metering Augers at every row

• Row to Row accuracy best in the industry

Food Grade Stainless Steel and Poly Construction

• Long life, cleans up easy

Single Hydraulic Input Requirement

• Reduces hydraulic requirements allowing for more options for grower

PWM Hydraulic Block Standard

• The Montag specific hydraulic block allows for industry leading control of the product metering system and the fan with only one hydraulic bank required.
• The block includes safety valves to protect the fan seals and reduces heat in the hydraulic system.

Product Fill Screen Standard (½” or ¾”)

• Removes large materials when loading that can plug down tubes or can harm metering system.

Non-Pressurized Tank

• Reduces air requirements by limiting air pressure.
• Simpler design with no gasket seals on lid.

37-Pin cable for multiple rate controller options

• Allows growers to use on current controller (with 37 Pin JD) or to use standard adapter plugs for other controllers.

Tank ladder access

• Safe entry and exit.
• Access for clean out.

Unique Montag Fluid Bed – Air Delivery System

• Reduced horsepower requirements (fan runs @3800 RPM or less)
• Fertilizer is introduced into the air stream at the air chamber requiring less pressure to move it to the row unit

All components are corrosion resistant

• Any component that comes in direct contact with fertilizer is either stainless steel or plastic.
• Components outside the tank (such as valves / weigh bars / elec. harnessing) are all selected with our corrosive environment in mind for in field reliability.

2–Section capable (16 & 24 row)

• 16 & 24 row machines can be factory installed with 2 section drive or components can be purchased and added for 2017 models and newer.
