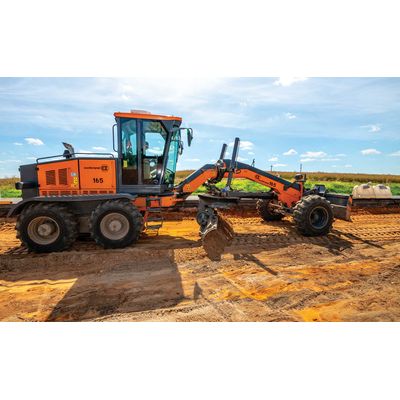

Amkodor - Model G160 - Motor Grader
Motor grader AMKODOR G160 is designed for planning and profiling the subgrade surface of roads and airfields, moving, leveling, mixing soil and other road construction materials, leveling slopes, excavations, embankments, clearing the roadway from snow, as well as for ripping heavy soils with the help of extra working attachment – ripper.
ENGINE
Model – D-260.9S2
Manufacturer – Minsk Motor Plant
Rated power, kW (h.p.) – 132 (180)
TRANSMISSION
Hydromechanical – 120.63
Manufacturer – AMKODOR
Number of gears, forward/reverse – 6/3
Maximum travel speed, km/h – 35.5
Wheel formula – 1?2?3
Front axle – non-driving, steered
Manufacturer -AMKODOR
Rear axle – tandem, drive
Manufacturer – NAF (Germany)
Differential – No-Spin
Tires – 16.9-R24
HYDRAULIC SYSTEM
Hydraulic system of working attachments: 2-pump
Swing system: front steering wheels, articulated, hydraulically actuated
Service brakes: hydraulically actuated wet multi-disc brakes
Parking brake system: single disc dry brake, hydraulic release and parking brake tightening
ELECTRICAL SYSTEM
Voltage, V – 24
CABIN
Type – Closed, detachable
ROPS – Integrated
OTHER
Air conditioning – Option
Front fenders -Option
Ripper – Option
3D leveling system -Option
GRADER BLADE
Width, mm – 3660
Height, mm – 625
Lateral reach, mm – 550
Cutting depth, mm – 500
DOZER BLADE
Width, mm – 2500
Height, mm – 850
Cutting depth, mm – 50
RIPPER
Width, mm – 1500
Ripping width, mm – 1390
Ripping depth, mm – 250
Number of teeth, pcs. – 5
OVERALL AND WEIGHT SPECIFICATIONS
Length in transport position, mm – 9600
Width, mm – 2500
Height (over flashing light), mm – 3650
Height (over air conditioning), mm – 3620
OPERATING WEIGHT, KG:
with grader blade – 14500
with grader blade and ripper – 14800
with grader blade and front dozer blade – 15100
with grader blade, front dozer blade and ripper – 15400
