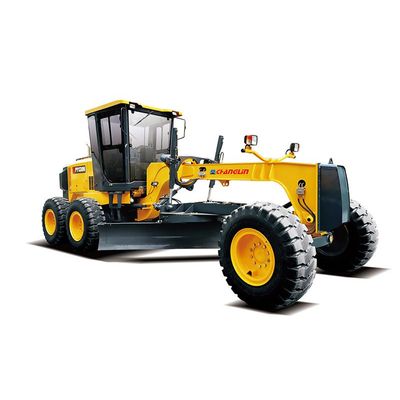

Chanlin - Model PY130H - Motor Grader

SHARE
The PY130H motor grader from Chanlin features a power shift transmission with single-handle electro-hydraulic control, allowing for straightforward operation with six forward and three reverse gears. It incorporates an efficient hydraulic system with a hydraulic lock, ensuring reliable functionality across all components. Safety is endorsed by the fully hydraulic brake system. The grader is powered by a Cummins turbocharged engine, optimizing productivity while minimizing fuel usage. This machine has a box-type chassis for executing heavy-duty tasks, with an articulated frame and flexible blade suspension system enhancing its work range. Its NO-SPIN differential offers automatic locking and unlocking functions for excellent traction and stability. Additionally, it includes advanced features such as a precise inline fuel injection system, optimal axle weight distribution, and attachments including front dozer blades, rear rippers, and scarifiers for diverse operations. An automatic leveling 2D machine control system is also available, increasing precision in operations.
Most popular related searches
motor grader
dozer blade
lawn scarifier
rear blade
blade grader

Our 713H motor grader adopts power shift transmission featuring sing-handle manipulation and electro-hydraulic control. With 6 forward and 3 reverse gears shifting, the vehicle is easy and convenient to operate. It also utilizes a highly efficient hydraulic system with hydraulic lock, enabling normal operation of every unit. Moreover, the fully hydraulic brake system provides high working safety and reliability for the equipment.

Operating weight: 12000KG
Rated power: 97kW
Blade width: 3658mm

Our road grader is equipped with NO-SPIN differential having auto locking and unlocking function, which ensures great stability and powerful traction. Due to the reasonable axle load allocation, the vehicle can work stably when cutting hard ground surface. It is able to finish heavy-duty task because of the box-type frame and advanced transmission. This engineering machinery can also accomplish various tasks through the flexible blade suspension system and articulated frame.



Model: PY130H
Length×Width×Height(mm): 8060×2600×3370
Operating weight (Kg): 12000
Blade dimensions (mm): 3658×545×16
Traveling gears: 6 Forward 3Reverse
Traveling speed forward(km/h): 6.9/10.7/17.3/26/37.8/53.4
Traveling speed reverse(km/h): 6.9/17.3/37.8
Diesel engine: Cummins 6BT5.9-C130
Rated output(KW): 97

  • High Performance, Low Emission EngineThe use of Cummins turbocharged engine enables the motor grader to achieve excellent productivity and low fuel consumption. The greater work speeds with high horsepower are provided thanks to the precise throttle control offered by the durable mechanical inline fuel injection system.

  • Reliable Transmission with Proven PerformanceThe operation is simple and convenient thanks to the single-handle electro-hydraulic controlled power-shift transmission with 6 forward and 3 reverse gears. Paired with ZF-technology power-shift transmission, the Cummins engine makes the motor grader more dependable and simple to use, and suitable for all kinds of working environments.

  • Robust Chassis FrameBox-type chassis frame and advanced transmission allows it to execute heavy-duty tasks.

  • Superior StabilityHydraulic lock and auto lock/unlock NO-SPIN differential ensure outstanding stability and powerful traction.

  • Flexible Blade MobilityThis motor grader has an extensive working range due to its flexible blade suspension system and articulated frame.

  • High Durability, Precise ControlThe drawbar is constructed with A-shaped and U-shaped frame for high durability and precise blade control.

  • Smooth OperationA turntable of four-inner gear guide type is included in the heat-treated rotating ring structure, which allows for smooth 360° rotation. The optimal curvature of the moldboard enables all types of soil to be moved freely and efficiently.

  • Ideal Axle Load AllocationAxle loads are optimally allocated for superior stability and high work efficiency even when cutting hard surfaces.

  • Reliable HydraulicsEvery component can be fully leveraged because of the deployment of an efficient hydraulic system. Safety is ensured by a dependable hydraulic brake system.

  • Excellent VisibilityThe spacious cab is designed with a side pillar layout for an excellent visibility that gives operator confidence to maneuver in various working conditions. The moldboard and front tires are clearly visible due to the well-positioned blade linkage.

  • Work Tools and Attachments
    Front Dozer Blades    The front dozer, or front blade, is a piece of motor grader attachments that is mounted in the front of the vehicle for spreading gravel piles, or pushing materials in corners where is difficult to reach with the moldboard.

  • Work Tools and Attachments
    Rear Rippers & Mid-mount Scarifiers    Attachments such as rippers and scarifiers are tools used for digging up asphalt, rocks or other hard materials that cannot be removed by the moldboard. The V-type scarifier can accommodate up to 11 teeth, the ripper also can accommodate 3-9 shanks.

  • Automatic Leveling DeviceThe automatic leveling device as a 2D machine control system enables precise height and slope control, giving a high flexibility in the selection of sensors and application fields.

  • Rear Axle Drive SystemBy using large-size rear drive axle, the reliability of the transmission is significantly improved.

  • Double Row Roller ChainThe double row roller chain has a greater tensile strength (26 tons) over peer and national standards.
